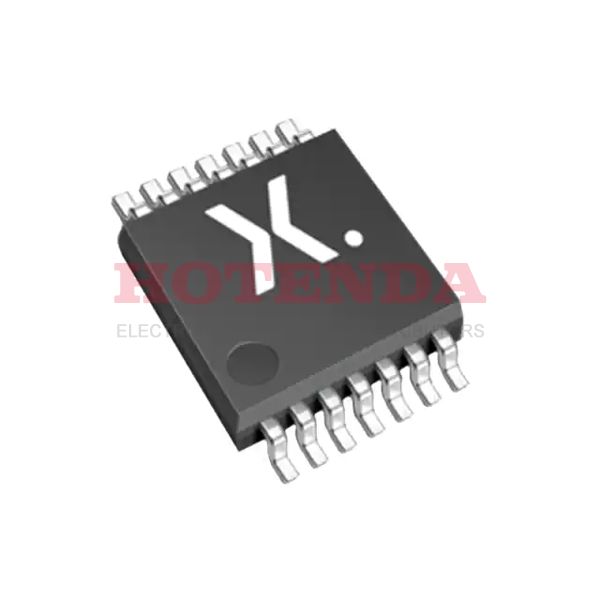

HEF4069UBTT,118 Overview
Due to its 14-TSSOP (0.173, 4.40mm Width) packaging, the part is convenient for international shipping. High reliability is achieved by using advanced packaging method Tape & Reel (TR). Inverter logic is the basis of its operation. This part needs a voltage of 3V~15V to function properly. An extended operating temperature of -40°C~125°C degrees Celsius. Part Surface Mount is mounted. High and low output current states are both 3.4mA 3.4mA. The series 4000B contains it. A total of 14 terminations have been recorded. It has 6 functions that enhance user experience significantly. Use 4069 when searching for device variants. Part bodies are injected with 14 pins. There are many applications for this logic device, mounted at Surface Mount. You can find the functions of the 14 pins in the datasheets. As the part is in a quiescent state, it has 1μA current flowing through it. A 6 circuit is present in this device. To supply the device, a voltage of 3V must be applied. It reaches 15V when the supply voltage is maximal (Vsup). In the specification of the chip, it is specified that the operating supply voltage will be 12V volts.
HEF4069UBTT,118 Features
Inverter Logic Type
Operating Temperature: -40°C~125°C
Quiescent Current: 1μA
HEF4069UBTT,118 Applications
There are a lot of Nexperia USA Inc.
HEF4069UBTT,118 Gates and Inverters applications.
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
