Name: MSP430FG4616IPZ
Brand: Texas Instruments
SKU: MSP430FG4616IPZ
Price: 24.04000 USD
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 1 day ago)
Factory Lead Time	6 Weeks
Mounting Type	Surface Mount
Package / Case	100-LQFP
Surface Mount	YES
Number of Pins	100
Weight	677.610302mg
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	MSP430x4xx
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	100
Termination	SMD/SMT
ECCN Code	EAR99
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	3V
Frequency	8MHz
Base Part Number	MSP430
Pin Count	100
Interface	I2C, IrDA, LIN, SCI, SPI, UART, USART
Memory Size	92kB
Oscillator Type	Internal
Number of I/O	80
RAM Size	4K x 8
Voltage - Supply (Vcc/Vdd)	1.8V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Number of Bits	16
Core Processor	CPUX
Peripherals	Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	92KB 92K x 8 + 256B
Connectivity	I2C, IrDA, LINbus, SCI, SPI, UART/USART
Supply Current-Max	0.74mA
Bit Size	16
Data Converter	A/D 12x12b; D/A 2x12b
Watchdog Timer	Yes
Access Time	8 μs
Has ADC	YES
DMA Channels	YES
Data Bus Width	16b
DAC Channels	YES
Number of Timers/Counters	2
Density	736 kb
Boundary Scan	YES
Low Power Mode	YES
Number of A/D Converters	12
Format	FIXED-POINT
Integrated Cache	NO
RAM (words)	4
Number of Serial I/Os	2
Number of PWM Channels	5
Number of I2C Channels	1
Number of SPI Channels	3
Height	1.6mm
Length	14mm
Width	14mm
Thickness	1.4mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

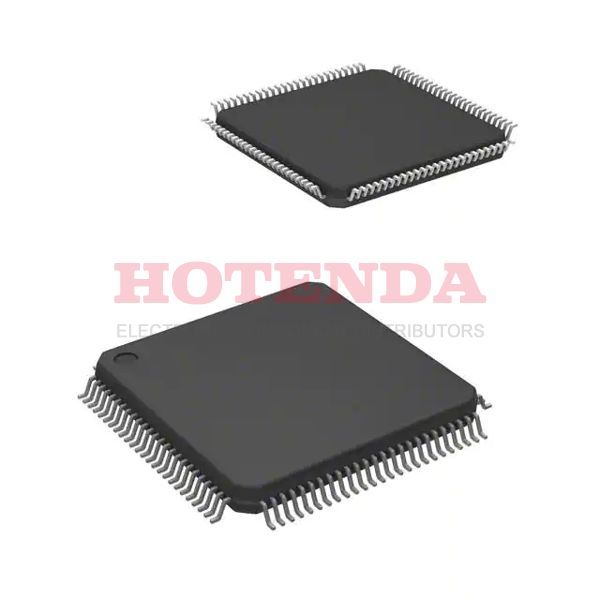

MSP430FG4616IPZ Product Details

MSP430FG4616IPZ Overview

This Microcontroller comes in a 100-LQFP package. 80 I/Os are available. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. Powered by the 16-Bit core, it offers a wide range of capabilities. This program has a type of memory called FLASH for this MCU's program memory. There is a temperature range of -40°C~85°C TA for this Microcontroller. An electrical component of this type belongs to the MSP430x4xx series. 92KB 92K x 8 + 256B is the size of its program memory. There is a CPUX Core Processor inside MCU that provides this device with its power. This device belongs to the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. The MCU has a number of 100 terminals. 16-bits are used for its size. IC Chip has 3V volt supply outputs. MCU chip has YES DMA channels. 92kB memory size belongs to the Chip part. Alternatives can be found by looking at the base part number MSP430 Microcontroller. In the case of 8MHz frequency operation, it can perform efficiently. In this chip, 100 pins can be accessed. The clock has 2 timers/counters to keep track of the time. In total, Microcontroller chip has 100 pins. This device comes with a set of 12 A/D converters that have been built into it. The total number of bits on a chip is 16. The device uses 5 PWM channels. An 1-channel PWM controller is used by the device. A total of 2 serial I/Os are incorporated into this part.

MSP430FG4616IPZ Features

MSP430x4xx series
Base part number of MSP430
1 I2C channels
100 Terminals
Based on the 16-Bit
Comes with 100 Pins

MSP430FG4616IPZ Applications

There are a lot of Texas Instruments MSP430FG4616IPZ Microcontroller applications. MSP430FG4616IPZ MCU is usually applied for Measurement and control field, Consumer electronics products, Network communication, mobile communication, Office automation equipment and computer peripherals, Industrial control Instrumentation and process control, Agriculture, transportation, Navigation control, Network application, Metering & measurement, Day to day life, Safety, Medical instruments and Automobile industry.
