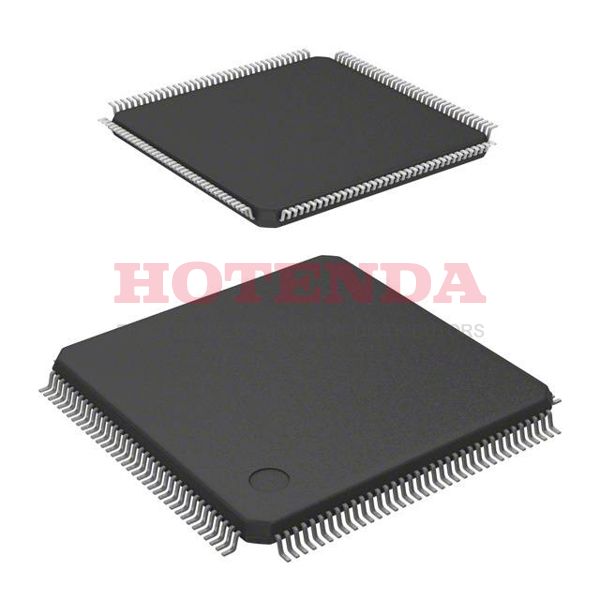

Name: STM32F429ZIT6
Brand: STMicroelectronics
SKU: STM32F429ZIT6
Price: 23.79000 USD
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 7 months ago)
Factory Lead Time	12 Weeks
Mounting Type	Surface Mount
Package / Case	144-LQFP
Surface Mount	YES
Number of Pins	144
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	STM32F4
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	144
Max Power Dissipation	500mW
Terminal Position	QUAD
Terminal Form	GULL WING
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Frequency	180MHz
Base Part Number	STM32F429
Interface	CAN, EBI/EMI, Ethernet, I2C, I2S, IrDA, LIN, SDIO, SPI, UART, USART, USB
Memory Size	2MB
Oscillator Type	Internal
Number of I/O	114
RAM Size	256K x 8
Voltage - Supply (Vcc/Vdd)	1.8V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M4
Peripherals	Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	2MB 2M x 8
Connectivity	CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SPI, UART/USART, USB OTG
Bit Size	32
Data Converter	A/D 24x12b; D/A 2x12b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	YES
Data Bus Width	32b
PWM Channels	YES
Number of Timers/Counters	14
Core Architecture	ARM
Number of UART Channels	4
Number of ADC Channels	24
Number of I2C Channels	3
Number of SPI Channels	6
Number of USB Channels	2
Number of Ethernet Channels	1
Height	1.45mm
Length	20.2mm
Width	20.2mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

STM32F429ZIT6 Product Details

STM32F429ZIT6 Description

STM32F429ZI devices are based on the high-performance Arm^? Cortex^?-M4 32-bit RISC core operating at a frequency of up to 180 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all Arm^? single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.

The STM32F429ZI devices incorporate high-speed embedded memories (Flash memory up to 2 Mbyte, up to 256 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.
