LP3996SDX-3333 Overview

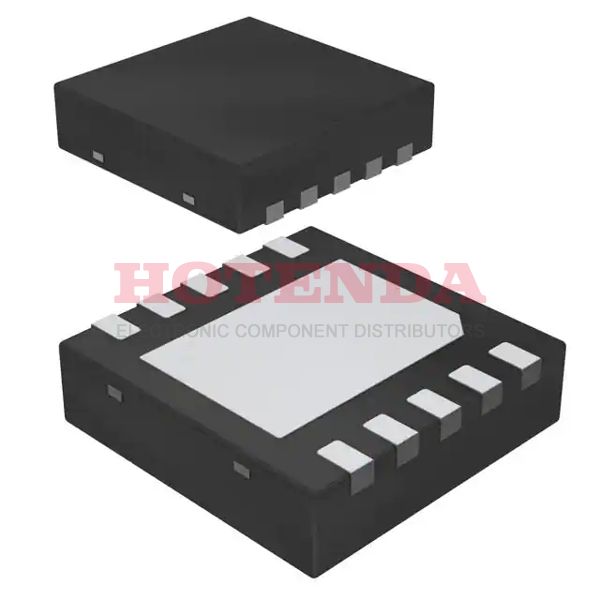

A Tape & Reel (TR) case is used to deliver this IC regulator. This voltage regulator IC comes in a 10-WFDFN Exposed Pad case. On the regulater IC chip, there are a total of 10 terminations. Output type Fixed. As a result of the Linear Voltage Regulator's design, the operating temperature of Surface Mount can be adjusted within a specified range. There is a temperature range of -40°C~85°C degrees during operation of the IC regulator. There is a configuration in this voltage regulator IC that specifies that its output function is Positive. In terms of its current output, it is able to supply 150mA 300mA. A total of 10 pins can be found on the board. In order to deliver prompt, sufficient and reliable performance, this regulator IC has 2 outputs in total. A dropout voltage of 10 volts can be obtained from this voltage regulator IC. There are 10 pins on the chip. As an FYI, this IC voltage regulator has the basic part number LP3996. An example of such a component would be this Other Regulators component. As you can see from the picture, the regulator IC is packed in a certain way. It operates in the 100μA Quiescent Current state.
LP3996SDX-3333 Features
110mV dropout voltage
Other Regulators subtageroy
TAPE AND REEL method of packing
LP3996SDX-3333 Applications
There are a lot of Texas Instruments
LP3996SDX-3333 Linear Voltage Regulators applications.
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
- Quick charge protocols
