Name: MIC5259-1.5BD5-TR
Brand: Microchip Technology
SKU: MIC5259-1.5BD5-TR
Availability: InStock

new-10%

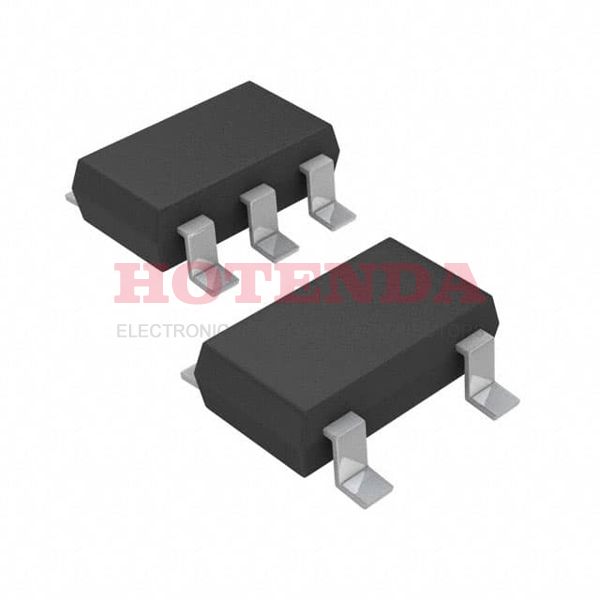

MIC5259-1.5BD5-TR

Manufacturer part number:MIC5259-1.5BD5-TR

Manufacturer:Microchip Technology

Description:Enable Fixed 0.95 mm MIC5259 PMIC -- Series 5 SOT-23-5 Thin, TSOT-23-5

Case Package:SOT-23

Datasheet:MIC5259-1.5BD5-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	SOT-23-5 Thin, TSOT-23-5
Surface Mount	YES
Supplier Device Package	TSOT-23-5
Number of Terminals	5
Package	Tape & Reel (TR)
Base Product Number	MIC5259
Mfr	Microchip Technology
Product Status	Discontinued at Digi-Key
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
JESD-609 Code	e0
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn85Pb15)
HTS Code	8542.39.00.01
Technology	CMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Number of Functions	1
Terminal Pitch	0.95 mm
Reach Compliance Code	compliant
Base Part Number	MIC5259
Pin Count	5
JESD-30 Code	R-PDSO-G5
Current - Supply (Max)	250μA
Qualification Status	Not Qualified
Voltage - Input (Max)	6V
Output Type	Fixed
Output Configuration	Positive
Current - Output	300mA
Control Features	Enable
Voltage - Output (Min/Fixed)	1.5V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq)	150μA
Voltage Dropout (Max)	0.55V @ 300mA
PSRR	65dB ~ 53dB (10Hz ~ 10kHz)
Seated Height-Max	1 mm
Output Voltage1-Max	1.5225 V
Output Voltage1-Min	1.4775 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	0.3 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.55 V
Operating Temperature TJ-Max	125 °C
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	1.5 V
Width	2.8 mm
Length	2.9 mm
RoHS Status	Non-RoHS Compliant

MIC5259-1.5BD5-TR Product Details

MIC5259-1.5BD5-TR Overview

The package contains a Tape & Reel (TR) case. In SOT-23-5 Thin, TSOT-23-5 cases, it is packaged. Fixed is the IC Voltage Regulator's output type. A total of 1 regulators are implemented in this eletric component. Surface Mount operating temperature varies depending on the IC Voltage Regulator. The Regulator IC chip is set to operate at -40°C~125°C degrees. It has been configured that the output function of this IC regulator is Positive. There is an output of 300mA at the moment. In total, there are 5 pins on this chip, which makes it a very large chip. I just wanted to let you know that this IC voltage regulator has the part number MIC5259 as its basic part number. This device is controlled by a FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR type regulator. It belongs to the -- Series of regulators.
