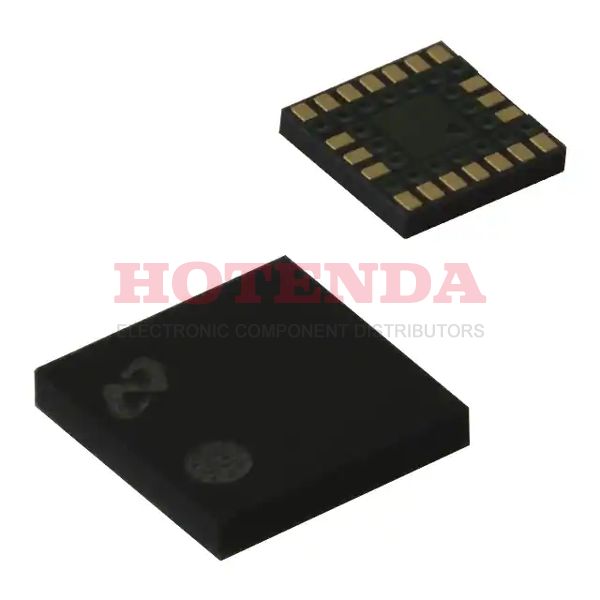

LMX2331USLEX/NOPB Overview
Tape & Reel (TR)-method packaging is used for clock ICs. A Clock PLL is included with the 20-UFLGA package. There are 20 terminations found in the file. There is a Clock PLL called CMOS, TTL which is designed to be the input to this clock generator. Using 1 circuits, the electronic part's full performance can be accessed. An upper frequency limit of 2GHz 600MHz Max can be achieved with this clock-based frequency synthesizer. Thanks to the Surface Mount, this electric component can be conveniently installed on the panel. As long as there are 2.7V~5.5V supply voltages provided, clock generator ic should work. Using the test statistics, we estimate that the ambient temperature should be -40°C~85°C. It's compatible with CMOS logic levels. An electrical part such as this one can be classified as a PLL Frequency Synthesizer component. According to the base part number, its related parts can be founded. And basically, this clock generator is often classified as a kind of PLL or Frequency Synthesis Circuits. PLLatinum? series electronic parts are included in this product. During normal operation, the maximum supply current should not exceed 3.8mA.
LMX2331USLEX/NOPB Features
Available in the 20-UFLGA
LMX2331USLEX/NOPB Applications
There are a lot of Texas Instruments LMX2331USLEX/NOPB Clock Generators applications.
- 10 Gigabit Ethernet
- Notebooks
- Laptops
- Test and instrumentation equipment
- High-speed optical transport network (OTN)
- Digital circuits
- Automatic control system test
- Phase modulation cellular systems
- VSAT (Small Ground Satellite Station)
- Remote telemetry and instrumentation
