MC10EP139DTR2 Overview

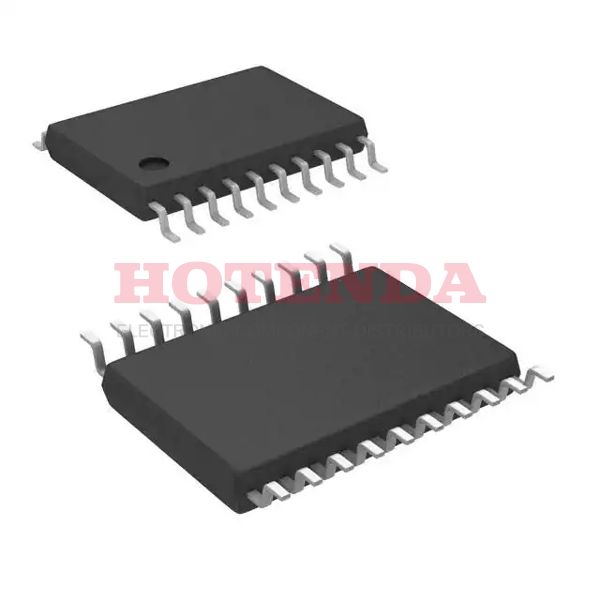

Clock ICs are packaged using the Tape & Reel (TR) method. In the 20-TSSOP (0.173, 4.40mm Width) package, there is an embedded clock generator. A maximum temperature of 260 can be sustained by this clock generator ic during reflowing. There are a total of 20 terminations in this file. A voltage of 3.3V should be applied to this electronic frequency generator. In this case, CML, NECL, PECL is designed to be the input of the clock generator. To access the electronic component's full performance, 1 circuits are implemented. The frequency generator has a maximum frequency of 1GHz. Thanks to the Surface Mount, this electric component can easily be installed on a panel. There is a maximum voltage of 5.5V for this clock generator. Keeping the supply voltage for this frequency synthesizer above 3V is recommended for safety reasons. There are 3V~5.5V available for use with this clock PLL. Test statistics suggest setting the ambient temperature at -40°C~85°C, which is -40°C~85°C. There are several logic levels in ECL logic that can be used with this clock generator. It is possible to classify this electronic component as a Clock Generator. An IC that generates clocks specifically for microprocessors, this clock PLL is 20-bits in si20e. The related electrical components for the base part number MC10EP139 can be found below. A 20 pin is available on the clock PLL. A Clock Drivers clock generator is essentially what this device is. It is part of the 10EP series of electronic components. 10E-family clock generators are similar.
MC10EP139DTR2 Features
Available in the 20-TSSOP (0.173, 4.40mm Width)
Supply voltage of 3.3V
MC10EP139DTR2 Applications
There are a lot of ON Semiconductor
MC10EP139DTR2 Clock Generators applications.
- Wide area power system
- Digital circuits
- Wireless base station for LTE, LTE-advanced
- Picocells, femtocells and small cells
- Sampling clocks for ADC and DAC
- 1 Gigabit Ethernet
- 10 Gigabit Ethernet
- FPGA and processor clocks
- Line cards used in telephone exchange
- Fiber Channel
