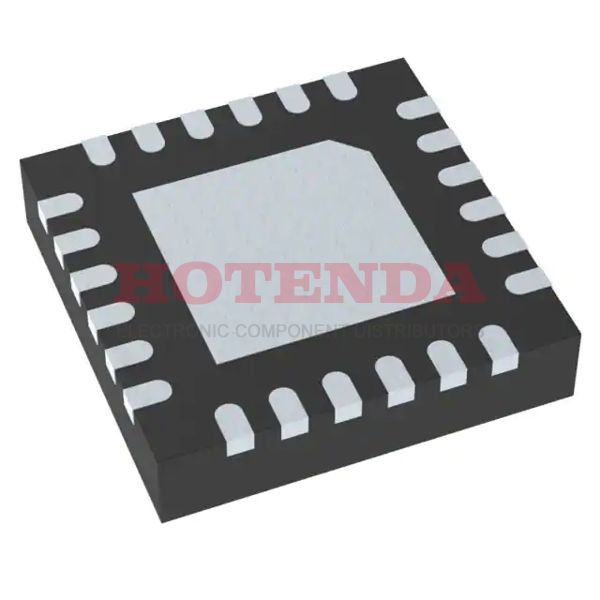

CDC421125RGETG4 Overview
It is packaged using the Tape & Reel (TR) method since it is a clock IC. The 24-VFQFN Exposed Pad package includes this clock generator. This clock generator ic can sustain 260 degrees of temperature during reflowing. In it, there are 24 terminations to be found. A voltage of 3.3V should be applied to this electronic frequency generator. This Clock PLL will be fed by LVCMOS, Crystal as its input. There are 1 circuits implemented in order to achieve full performance from this electronic part. It provides a maximum frequency of 125MHz. Because of the Surface Mount, clock PLL can be easily mounted on the panel. There should be 3V~3.6V provided with this RF synthesizer. The temperature should be set at -40°C~85°C to ensure reliable performance. There are several logic levels in LVPECL logic that can be used with this clock generator. An electrical part such as this one can be classified as a Clock Generator component. Microprocessor-specific clock PLL with 24 bits. The related electrical components for the base part number CDC421125 can be found below. A 24 pin is available on the PLL. Electronic frequency generator can handle voltages up to 3.3V. It is able to realize high efficiency when operating at a frequency of 31.25MHz.
CDC421125RGETG4 Features
Available in the 24-VFQFN Exposed Pad
Supply voltage of 3.3V
Operating supply voltage of 3.3V
CDC421125RGETG4 Applications
There are a lot of Texas Instruments CDC421125RGETG4 Clock Generators applications.
- Electronic countermeasures
- Computers to manage memory cards
- Coherent carrier tracking
- Main oscillator in receiver
- Peripheral devices
- Cellular/4G
- Cell phones
- Signal analyzer
- Frequency shifting decodes
- Multiplexing communication
