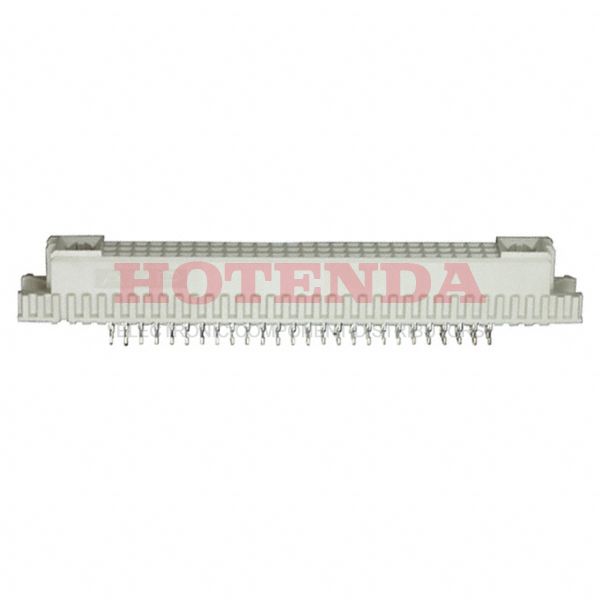

Manufacturer part number:148417-5

Manufacturer:TE Connectivity AMP Connectors

Description:148417-5 datasheet pdf and Backplane Connectors - DIN 41612 product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:148417-5 Datasheet

RoHs Status:non-compliant

Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 6 days ago)
Factory Lead Time	25 Weeks
Contact Material	Bronze
Contact Plating	Lead, Nickel, Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	Polyester, Thermoplastic
Housing Material	Thermoplastic
Material - Insulation	Polymer Thermoplastic, Glass Filled
PCB Mounting Orientation	Vertical
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	Eurocard
Published	1999
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Press-Fit
ECCN Code	EAR99
Connector Type	Receptacle, Female Sockets
Number of Positions	80 (78 + 2 Power)
Color	Grey
Number of Rows	3
Gender	Receptacle
MIL Conformance	NO
DIN Conformance	YES
IEC Conformance	YES
Filter Feature	NO
Mixed Contacts	YES
Option	GENERAL PURPOSE
Pitch	0.100 2.54mm
Orientation	Straight
Style	M
Number of Positions Loaded	78
Current Rating	3A
Reference Standard	UL
Contact Finish	Gold
Number Of PCB Rows	3
Number of Contacts	80
PCB Contact Pattern	RECTANGULAR
Mating Information	148411-5
Body Breadth	0.417 inch
UL Flammability Code	94V-0
Lead Length	5.9944mm
Contact Resistance	15mOhm
Insulation Resistance	1000000000000Ohm
Row Spacing	2.54 mm
ELV	Non-Compliant
Max Voltage Rating (AC)	250V
Max Current Rating	3A
Polarization Key	POLARIZED HOUSING
Dielectric Withstanding Voltage	1000VAC V
Number of Columns	26
Termination Post Length	6mm
Preloaded	Yes
Level, Class	2
Make First / Break Last	No
Name of Rows Loaded	A,B,C
Height	16.33mm
Length	93.98mm
Length - Tail	2.92mm
PCB Thickness	1.5748mm
Material Flammability Rating	UL94 V-0
RoHS Status	Non-RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Not Applicable
