Name: 5745458-2
Brand: TE Connectivity AMP Connectors
SKU: 5745458-2
Price: 14.01000 USD
Availability: InStock

new

5745458-2

Manufacturer part number:5745458-2

Manufacturer:TE Connectivity AMP Connectors

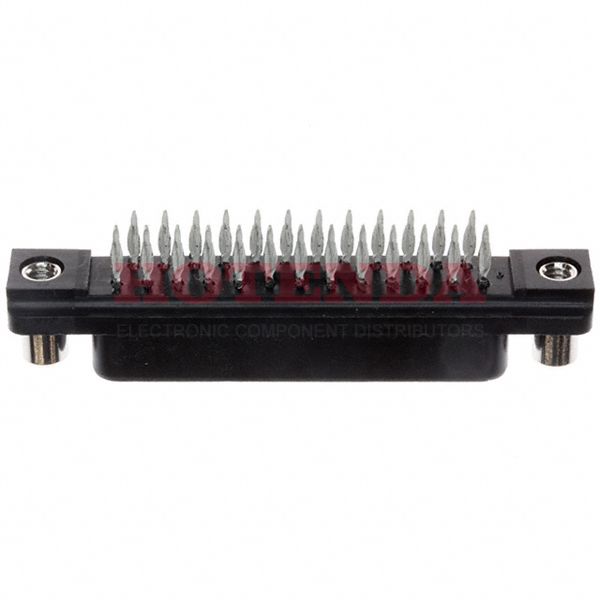

Description:AMPLIMITE HDP-20 Series D-Sub Receptacle, Female Sockets 25-Position Female Signal Press-Fit 3 DB B Through Hole Copper Alloy Gold

Case Package:SOT-23

Datasheet:5745458-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Dielectric Material	Polyamide (PA), Nylon, Glass Filled
Housing Material	Thermoplastic
Operating Temperature	-55°C~105°C
Packaging	Bulk
Published	1999
Series	AMPLIMITE HDP-20
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Press-Fit
Connector Type	Receptacle, Female Sockets
Number of Positions	25
Color	Black
Number of Rows	2
Gender	Female
Contact Type	Signal
Pitch	2.76mm
Orientation	Vertical
Shielding	Unshielded
Depth	10.41mm
Contact Finish	Gold
Lead Length	5.7912mm
Row Spacing	2.8448 mm
Flange Feature	Mating Side, Female Screwlock (4-40)
ELV	Compliant
Connector Style	D-Sub
Number of Ports	1
Sealable	No
Shell Size, Connector Layout	3 DB B
Hole Diameter	3.048 mm
Preloaded	Yes
Mating Connector Lock	With
Length	53.08mm
PCB Thickness	2.36mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Not Applicable

5745458-2 Product Details

5745458-2 Overview

Packaging is in the form of Receptacle, Female Sockets.There is a mounting type of Through Hole for this device.To package the product, a Bulk case is used.A member of the AMPLIMITE HDP-20 Series.A number of tasks can be managed using the 1 ports.There is a Through Hole mount on the part.-55°C~105°C Operating Temperature is the default operating temperature for the device.
