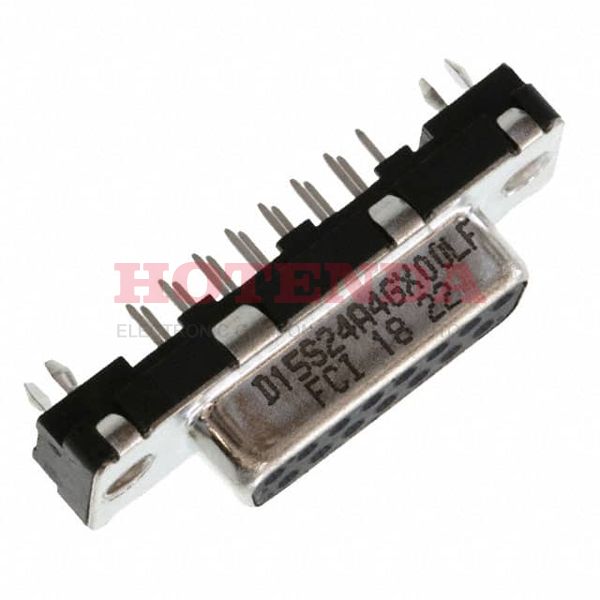

Name: D15S24A4GX00LF
Brand: Amphenol ICC (FCI)
SKU: D15S24A4GX00LF
Price: 2.98000 USD
Availability: InStock

new-10%

D15S24A4GX00LF

Manufacturer part number:D15S24A4GX00LF

Manufacturer:Amphenol ICC (FCI)

Description:D15S24A4GX00LF datasheet pdf and D-Sub Connectors product details from Amphenol ICC (FCI) stock available on our website

Case Package:SOT-23

Datasheet:D15S24A4GX00LF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	17 Weeks
Contact Material	Phosphor Bronze
Contact Plating	Gold, Tin
Mount	Through Hole
Mounting Type	Through Hole
Dielectric Material	Polybutylene Terephthalate (PBT)
Housing Material	PBT
Shell Material, Finish	Steel, Tin Plated
Operating Temperature	-55°C~125°C
Packaging	Tray
Published	2006
Series	Delta D
Feature	Board Lock
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	15
Termination	Solder
Connector Type	Receptacle, Female Sockets
Number of Positions	15
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Color	Black
Number of Rows	2
Gender	Female
Voltage - Rated	300V
Contact Type	Signal
Current Rating (Amps)	5A
Pitch	2.74mm
Orientation	Straight
Depth	12.55mm
Current Rating	5A
Contact Finish	Gold
Number of Contacts	15
Flange Feature	Housing/Shell (4-40)
Max Voltage Rating (AC)	300V
Plating	Tin
Connector Style	D-Sub
Number of Ports	1
Shell Size, Connector Layout	2 DA A
Max Supply Voltage (AC)	300V
Height	12.39mm
Length	39.14mm
Width	12.17mm
Contact Finish Thickness	Flash
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

D15S24A4GX00LF Product Details

D15S24A4GX00LF Overview

The packaging is Receptacle, Female Sockets.Mounting type Through Hole is assigned to the device.A Tray case is used for packaging.A member of the Delta D Series.Whenever the temperature is below 125°C, it's best.Temperatures below -55°C are required for operation of this device.A variety of tasks can be managed through the 1 ports.It is more powerful in many ways due to its Board Lock feature.By Through Hole it's mounted.There are no terminations on the chip.The device is operating at -55°C~125°C Operating Temperature.
