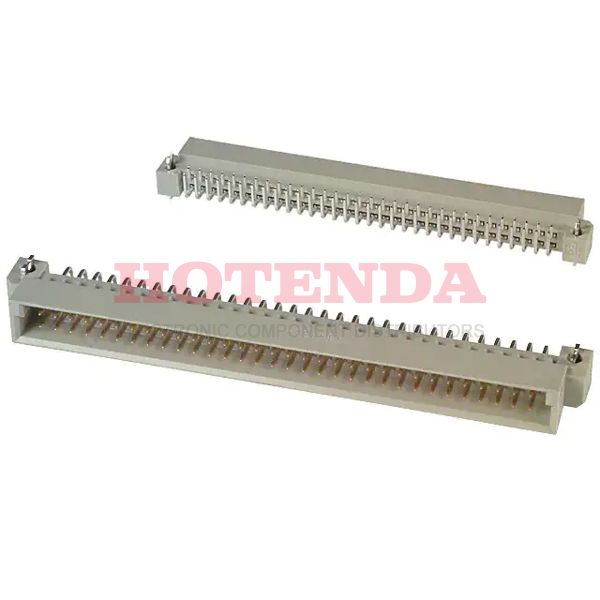

5536385-5

new-10%

5536385-5

Manufacturer part number:5536385-5

Manufacturer:TE Connectivity AMP Connectors

Description:5536385-5 datasheet pdf and Backplane Connectors - DIN 41612 product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:5536385-5 Datasheet

RoHs Status:non-compliant

Name	Value
Type	Parameter
Factory Lead Time	25 Weeks
Mounting Type	Through Hole, Right Angle
Material - Insulation	Polymer Thermoplastic, Glass Filled
Mounting Option 1	LOCKING
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	Eurocard
Published	1999
JESD-609 Code	e3
Feature	Board Lock
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Plug, Male Pins
Number of Positions	64
Number of Rows	2
HTS Code	8536.69.40.40
MIL Conformance	NO
DIN Conformance	YES
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.100 2.54mm
Total Number of Contacts	64
Style	B
Number of Positions Loaded	All
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Body Length or Diameter	3.7 inch
Number Of PCB Rows	2
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.337 inch
Body Depth	0.497 inch
Rated Current (Signal)	1.5A
Contact Resistance	15mOhm
Insulation Resistance	1000000000000Ohm
Polarization Key	POLARIZED HOUSING
Dielectric Withstanding Voltage	1000VAC V
Withdrawl Force-Min	.139 N
Mating Contact Row Spacing	0.1 inch
Name of Rows Loaded	A,B
Length - Termination	0.104 inch
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
