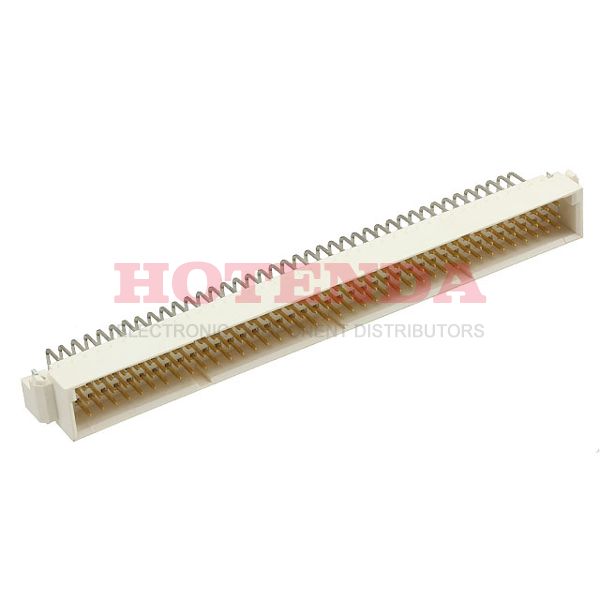

5650914-5

new-10%

5650914-5

Manufacturer part number:5650914-5

Manufacturer:TE Connectivity AMP Connectors

Description:5650914-5 datasheet pdf and Backplane Connectors - DIN 41612 product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:5650914-5 Datasheet

RoHs Status:non-compliant

Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 5 days ago)
Factory Lead Time	25 Weeks
Contact Plating	Tin, Gold
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Housing Material	Polymer
Material - Insulation	Polymer Thermoplastic, Glass Filled
PCB Mounting Orientation	Right Angle
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	Eurocard
Published	1999
Feature	Board Lock
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Plug, Male Pins
Color	Grey
Number of Rows	3
MIL Conformance	NO
DIN Conformance	YES
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.100 2.54mm
Total Number of Contacts	120
Orientation	Right Angle
Depth	12.62mm
Style	C
Number of Positions Loaded	All
Current Rating	1.5A
Contact Finish	Gold
Number Of PCB Rows	3
Lead Length	2.65mm
Operating Supply Voltage	250V
Contact Resistance	15mOhm
Insulation Resistance	1000000000000Ohm
Row Spacing	2.54 mm
ELV	Compliant
Max Current Rating	1.5A
Polarization Key	POLARIZED HOUSING
Sealable	No
Contact Current Rating	1.5A
Circuit Application	Signal
Number of Signal Positions	120
Number of Columns	16
Termination Post Length	2.65mm
Level, Class	2
Height	11.1mm
Length	114.3mm
Length - Tail	2.34mm
PCB Thickness	1.5748mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free
