Name: 1-5120529-2
Brand: TE Connectivity AMP Connectors
SKU: 1-5120529-2
Price: 11.21000 USD
Availability: InStock

new

1-5120529-2

Manufacturer part number:1-5120529-2

Manufacturer:TE Connectivity AMP Connectors

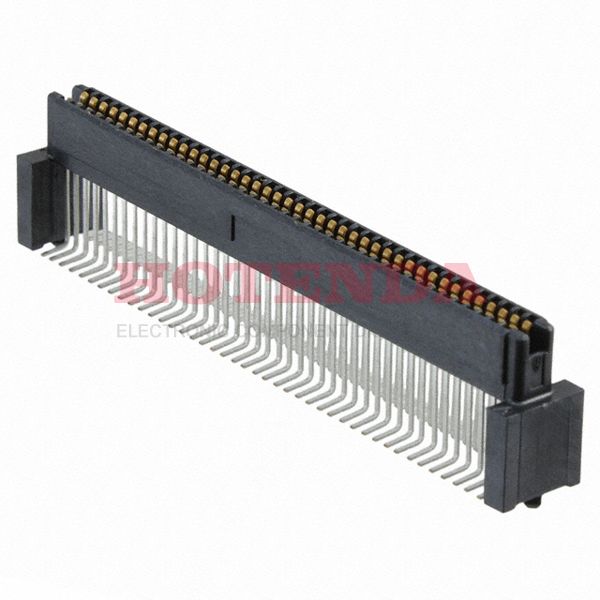

Description:Receptacle, Outer Shroud ContactsTape & Reel (TR)2 Rows0.039 1.00mmSurface Mount84 PositionsFree Height (FH) IEEE 1386, PMCGoldSMD/SMTBronze

Case Package:SOT-23

Datasheet:1-5120529-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Lifecycle Status	ACTIVE (Last Updated: 5 days ago)
Contact Material	Bronze
Contact Plating	Gold, Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Contact Shape	Square
Housing Material	Thermoplastic
PCB Mounting Orientation	Vertical
PCB Mount Retention	Without
Underplate Material	Nickel
PCB Mount Alignment	Without
Packaging	Tape & Reel (TR)
Published	2006
Series	Free Height (FH) IEEE 1386, PMC
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	SMD/SMT
Connector Type	Receptacle, Outer Shroud Contacts
Number of Positions	84
Max Operating Temperature	230°C
Min Operating Temperature	-67°C
Number of Rows	2
Pitch	0.039 1.00mm
Orientation	Vertical
Contact Finish	Gold
Approval Agency	CSA
Number of Contacts	84
Housing Color	Black
Operating Supply Voltage	250V
Insulation Resistance	2MOhm
Row Spacing	1 mm
ELV	Compliant
Plating	Gold
Sealable	No
Contact Current Rating	1A
Circuit Application	Signal
Number of Columns	42
Mating Alignment	Without
Stackable	Yes
Differential Signaling	Yes
Height	7.37mm
Length	44.22mm
Width	6.04mm
Contact Finish Thickness	50.0μin 1.27μm
Plating Thickness	3.81μm
Contact Finish Thickness - Mating	1.27μm
Length - Tail	2.0574mm
Height Above Board	0.290 7.37mm
Stack Height (Mating)	11mm 12mm
Stack Height	12mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1-5120529-2 Product Details

1-5120529-2 Overview

It comes in Receptacle, Outer Shroud Contacts packaging.In order to package the product, a Tape & Reel (TR) case is used.The device's mounting type is Surface Mount.It belongs to the Free Height (FH) IEEE 1386, PMC Series of products.It is necessary to use a Surface Mount socket in order to mount this part.It's best to use it when the temperature is below 230°C.This device must operate at a minimum temperature of -67°C.As this device is suitable for the operation with a 250V supply, it is suitable for use with that supply.
