Name: QTH-060-04-F-D-A
Brand: Samtec Inc.
SKU: QTH-060-04-F-D-A
Price: 22.27000 USD
Availability: InStock

new

QTH-060-04-F-D-A

Manufacturer part number:QTH-060-04-F-D-A

Manufacturer:Samtec Inc.

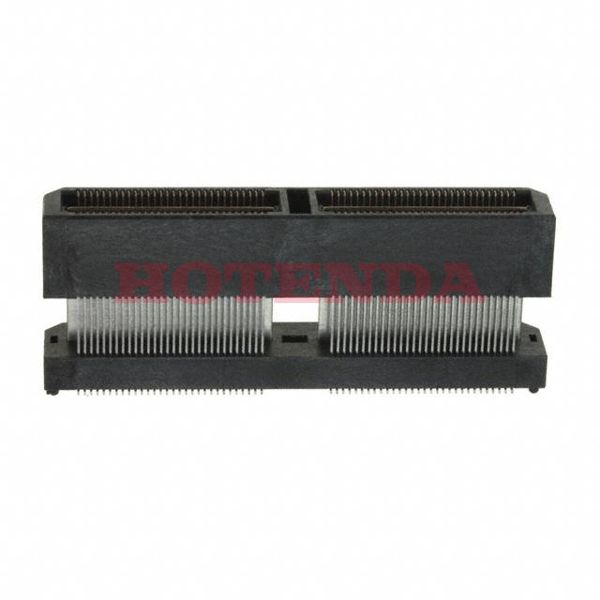

Description:Header, Outer Shroud Contacts Tray 2 Rows 0.020 0.50mm Surface Mount 120 Positions Q Strip® QTH Gold Solder Bronze

Case Package:SOT-23

Datasheet:QTH-060-04-F-D-A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Bronze
Mount	Surface Mount
Mounting Type	Surface Mount
Housing Material	Polymer
Packaging	Tray
Published	2013
Series	Q Strip® QTH
JESD-609 Code	e3
Feature	Board Guide, Ground Bus (Plane)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header, Outer Shroud Contacts
Number of Positions	120
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Number of Rows	2
Gender	Male
Additional Feature	ELP, POLARIZED
HTS Code	8536.69.40.40
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.020 0.50mm
Total Number of Contacts	120
Orientation	Straight
Depth	5.97mm
Number of Conductors	ONE
Reference Standard	UL, CSA
Contact Finish	Gold
Reliability	COMMERCIAL
Number Of PCB Rows	2
PCB Contact Pattern	RECTANGULAR
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Rated Current (Signal)	1A
Contact Style	CENTRONIC
Insulation Resistance	5000000000Ohm
Body/Shell Style	RECEPTACLE
Max Voltage Rating (AC)	125V
Polarization Key	POLARIZED HOUSING
Dielectric Withstanding Voltage	375VAC V
Durability	100 Cycles
Contact Pattern	RECTANGULAR
Insulator Color	BLACK
Length	40mm
Contact Finish Thickness	3.00μin 0.076μm
Plating Thickness	3μin
Height Above Board	0.600 15.24mm
Stack Height (Mating)	16mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

QTH-060-04-F-D-A Product Details

QTH-060-04-F-D-A Overview

Packaging for this item is Header, Outer Shroud Contacts.It is necessary to use a Tray case for packaging the product.There is a mounting type of Surface Mount for this device.This product is part of the Q Strip® QTH Series.In operation, it is possible to ensure that Board Guide, Ground Bus (Plane) is maintained.This part requires a Surface Mount socket for mounting.You should use it when it's below 125°C.A minimum temperature of -55°C is required for the operation of this device.Moreover, there are a number of other features, including ELP, POLARIZED, to name just a few.
