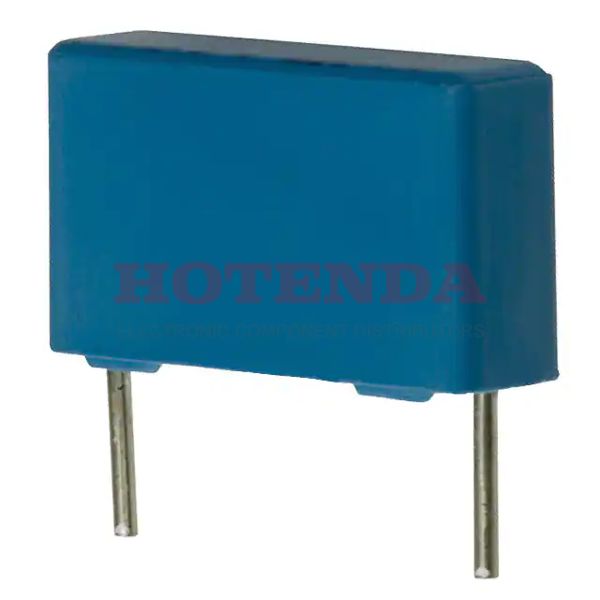

Name: B32522Q8224K289
Brand: TDK Electronics Inc.
SKU: B32522Q8224K289
Price: 0.41000 USD
Availability: InStock

new-10%

B32522Q8224K289

Manufacturer part number:B32522Q8224K289

Manufacturer:TDK Electronics Inc.

Description:B32522 0.22μF Film Capacitor ±10% Radial PC Pins 630V-DC 200V-AC Polyester, Metallized

Case Package:SOT-23

Datasheet:B32522Q8224K289 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	21 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polyester, Metallized
Operating Temperature	-55°C~125°C
Packaging	Tape & Box (TB)
Series	B32522
Tolerance	±10%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	Automotive; EMI, RFI Suppression
Additional Feature	RATED AC VOLTAGE(V) : 200
HTS Code	8532.25.00.70
Capacitance	0.22μF
Voltage - Rated DC	630V
Packing Method	AMMO PACK
Terminal Pitch	15mm
Voltage - Rated AC	200V
Capacitor Type	FILM CAPACITOR
Lead Spacing	0.591 15.00mm
Rated (DC) Voltage (URdc)	630V
Size Code	7135
Rated (AC) Voltage (URac)	200V
Height	17.5mm
Length	18mm
Width	9mm
RoHS Status	ROHS3 Compliant

B32522Q8224K289 Product Details

B32522Q8224K289 Overview

System function requires a rated (DC) voltage (URdc) of 630V.Electrical devices such as this have a lead spacing of 0.591 15.00mm.For powering systems, an AC voltage of 200V is required.A temperature of -55°C~125°C is suitable for operation of the device.
