R75GN41004000J

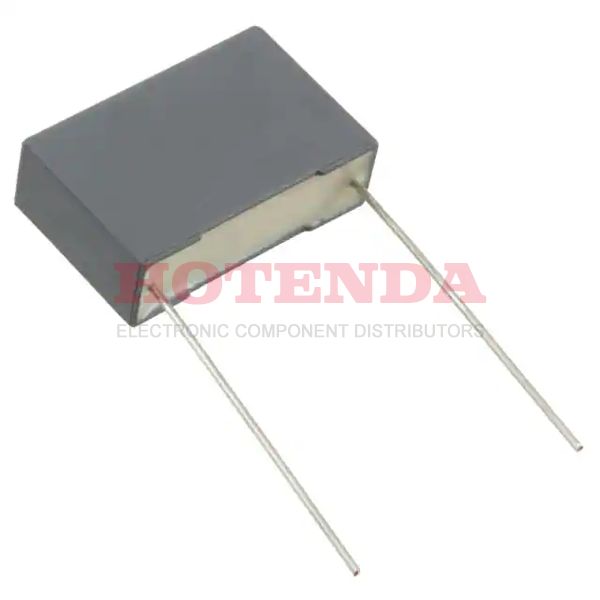

  • R75GN41004000J - R75 1μF Film Capacitor ±5% Radial PC Pins 160V-DC 90V-AC Polypropylene (PP), Metallized
  • R75GN41004000J - R75 1μF Film Capacitor ±5% Radial PC Pins 160V-DC 90V-AC Polypropylene (PP), Metallized

R75GN41004000J

R75GN41004000J

KEMET

R75 1μF Film Capacitor ±5% Radial PC Pins 160V-DC 90V-AC Polypropylene (PP), Metallized

SOT-23

R75GN41004000J Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 20 Weeks
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-55°C~105°C
PackagingBulk
Published 2014
Series R75
Size / Dimension 1.043Lx0.276W 26.50mmx7.00mm
Tolerance ±5%
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Termination PC Pins
Applications Automotive; High Frequency, Switching; High Pulse, DV/DT
Capacitance 1μF
Voltage - Rated DC 160V
Depth 7mm
Voltage - Rated AC 90V
Lead Pitch 22.5mm
Lead Length 30mm
Dielectric PP
Lead Spacing0.886 22.50mm
Lead Diameter 800 μm
Voltage 160V
Dissipation Factor0.05 %
Height 16mm
Height Seated (Max) 0.634 16.10mm
REACH SVHC No SVHC
RoHS StatusROHS3 Compliant
Ratings AEC-Q200
In-Stock:4355 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.570000$1.57
10$1.481132$14.81132
100$1.397294$139.7294
500$1.318202$659.101
1000$1.243587$1243.587

R75GN41004000J Product Details

R75GN41004000J Overview


A 0.886 22.50mm lead spacing is used in this electrical device.Temperatures of -55°C~105°C are suitable for operating the device.

R75GN41004000J Features



R75GN41004000J Applications


There are a lot of KEMET R75GN41004000J applications of film capacitors.

  • Satellite TV
  • Blocking
  • RF Modules
  • IGBT
  • TV and monitor sets
  • Switch mode power supplies
  • Compact fluorescent lamps (CFL)
  • Coupling, decoupling
  • Bypassing
  • Filtering
