Name: B32522C1475M289
Brand: TDK Electronics Inc.
SKU: B32522C1475M289
Price: 0.98000 USD
Availability: InStock

new-10%

B32522C1475M289

Manufacturer part number:B32522C1475M289

Manufacturer:TDK Electronics Inc.

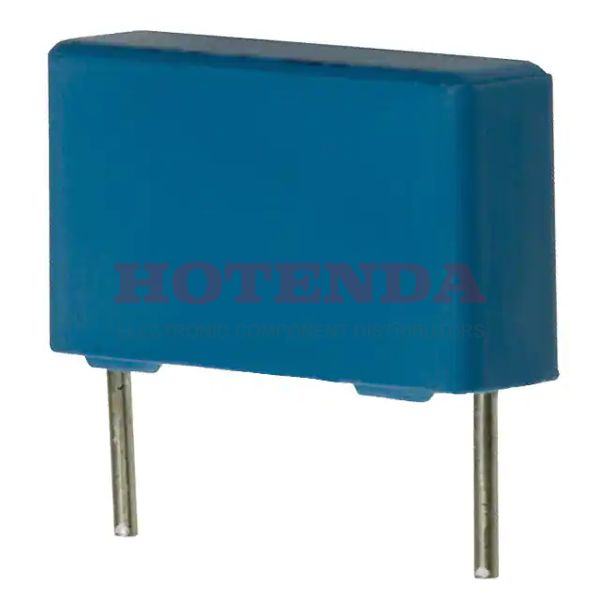

Description:B32522 4.7μF Film Capacitor ±20% Radial PC Pins 100V-DC 63V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked

Case Package:SOT-23

Datasheet:B32522C1475M289 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	29 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Operating Temperature	-55°C~125°C
Packaging	Tape & Box (TB)
Series	B32522
Size / Dimension	0.709Lx0.354W 18.00mmx9.00mm
Tolerance	±20%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Applications	Automotive; EMI, RFI Suppression
HTS Code	8532.25.00.70
Capacitance	4.7μF
Voltage - Rated DC	100V
Packing Method	AMMO PACK
Terminal Pitch	15mm
Reference Standard	AEC-Q200
Voltage - Rated AC	63V
Capacitor Type	FILM CAPACITOR
Lead Spacing	0.591 15.00mm
Rated (DC) Voltage (URdc)	100V
Rated (AC) Voltage (URac)	63V
Custom Capabilities	Special Lead Length Available On Request
Height Seated (Max)	0.689 17.50mm
Length	18mm
Width	9mm
RoHS Status	ROHS3 Compliant

B32522C1475M289 Product Details

B32522C1475M289 Overview

System function requires a rated (DC) voltage (URdc) of 100V.Electrical devices with 0.591 15.00mm lead spacing are used in this application.To power systems, URac must be set at 63V V.Temperatures of -55°C~125°C are suitable for operating the device.
