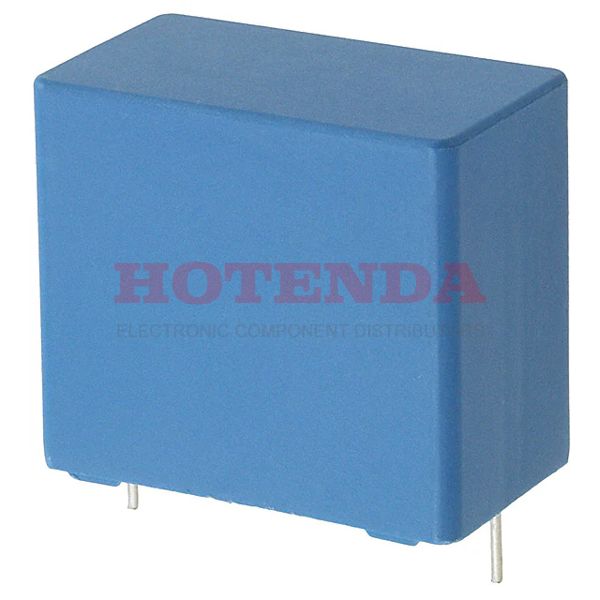

Name: B32524Q1336K000
Brand: TDK Electronics Inc.
SKU: B32524Q1336K000
Price: 7.47000 USD
Availability: InStock

new

B32524Q1336K000

Manufacturer part number:B32524Q1336K000

Manufacturer:TDK Electronics Inc.

Description:B32524 33μF Film Capacitor ±10% Radial PC Pins 100V-DC 63V-AC Polyester, Polyethylene Terephthalate (PET), Metallized

Case Package:SOT-23

Datasheet:B32524Q1336K000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polyester, Polyethylene Terephthalate (PET), Metallized
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	B32524
Size / Dimension	1.240Lx0.709W 31.50mmx18.00mm
Tolerance	±10%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	Automotive; EMI, RFI Suppression
HTS Code	8532.25.00.70
Capacitance	33μF
Voltage - Rated DC	100V
Terminal Pitch	27.5mm
Reach Compliance Code	not_compliant
Reference Standard	AEC-Q200
Voltage - Rated AC	63V
Capacitor Type	FILM CAPACITOR
Lead Spacing	1.083 27.50mm
Rated (DC) Voltage (URdc)	100V
Rated (AC) Voltage (URac)	63V
Custom Capabilities	Special Lead Length Available On Request
Height Seated (Max)	1.083 27.50mm
Length	31.5mm
Width	18mm
RoHS Status	ROHS3 Compliant

B32524Q1336K000 Product Details

B32524Q1336K000 Overview

An internal (DC) voltage of 100V is required for systems to function.A 1.083 27.50mm lead spacing is used in this electrical device.For powering systems, an AC voltage of 63V is required.Devices with a -55°C~125°C temperature capability can be operated.
