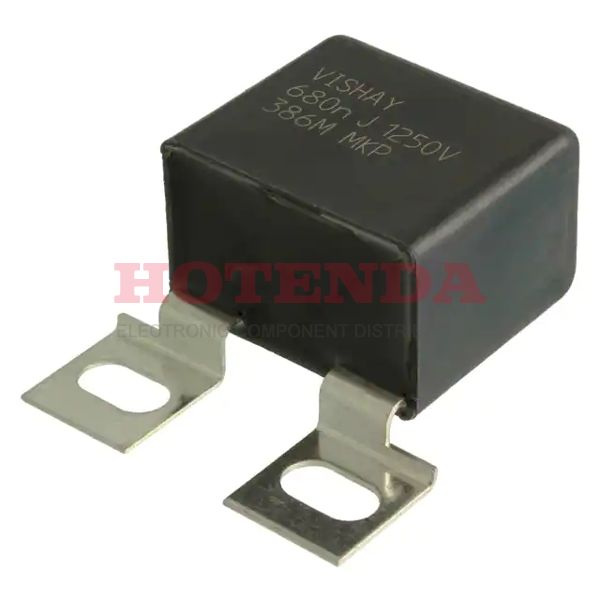

Name: MKP386M418250JT2
Brand: Vishay BC Components
SKU: MKP386M418250JT2
Price: 18.58000 USD
Availability: InStock

new

MKP386M418250JT2

Manufacturer part number:MKP386M418250JT2

Manufacturer:Vishay BC Components

Description:MKP386M 0.18μF Film Capacitor ±5% Rectangular Box Screw Terminals 2.5kV-DC 800V-AC Polypropylene (PP), Metallized Chassis Mount

Case Package:SOT-23

Datasheet:MKP386M418250JT2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mount	Chassis Mount
Mounting Type	Chassis Mount
Package / Case	Rectangular Box
Terminal Shape	LUG
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C~105°C
Packaging	Bulk
Published	2007
Series	MKP386M
Size / Dimension	1.732Lx0.866W 44.00mmx22.00mm
Tolerance	±5%
JESD-609 Code	e3
Feature	Low ESR
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	Screw Terminals
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Applications	Snubber
HTS Code	8532.25.00.80
Capacitance	0.18μF
Voltage - Rated DC	2.5kV
Reach Compliance Code	unknown
Reference Standard	IEC60384-17
Voltage - Rated AC	800V
Lead Pitch	6.1976mm
Capacitor Type	FILM CAPACITOR
ESR (Equivalent Series Resistance)	11mOhm
Lead Spacing	0.244 6.20mm
Rated (DC) Voltage (URdc)	2500V
Height Seated (Max)	1.496 38.00mm
Length	44mm
Width	22mm
RoHS Status	ROHS3 Compliant

MKP386M418250JT2 Product Details

MKP386M418250JT2 Overview

For systems to operate, a rated (DC) voltage (URdc) of 2500V must be applied internally.There is 11mOhm ESR (Equivalent Series Resistance) from the device.Lead spacing is 0.244 6.20mm for this electrical device.-55°C~105°C is the maximum temperature at which the device can operate.
