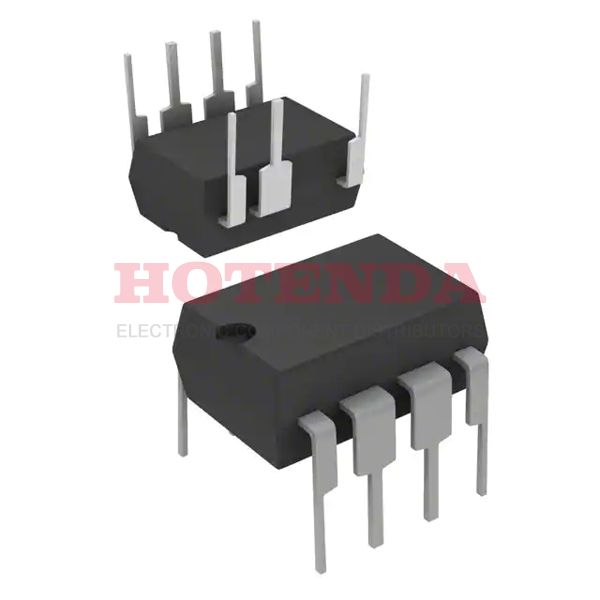

VIPER25HN Overview
It is embedded in package 8-DIP (0.300, 7.62mm), 7 Leads .It is available in Tube AC/DC power converter.Through Hole is mounted in the way of this AC/DC converter.For the ac dc converter to perform properly, it should be operated at a temperature of -40°C~150°C TJ °C.A SWITCHING CONTROLLER analog integrated circuit is used in this AC DC converter.Switching frequency reaches 225kHz Hz.This AC/DC converter is suitable for operation in the range of 8.5V~23.5V supply voltage (Vcc/Vdd).A total of 7 terminations have been recorded.There are 7 pins on this ac/dc converter.There are 7 pins in total.Through Hole is a suitable mounting point for the ac dc converters.This AC to DC converter belongs to the VIPer? plus family of manufacturers.A similar acdc converter can be searched by using the VIPER25 family.The number of outputs to run is 1 .Switching Regulator or Controllers contains the ac to dc conversions.Currently, the output current is set to 1.5A .On the basis of a unique technique, it is possible to ensure an input voltage with the maximum value of 23.5V .In the AC to DC transformer of a coverter, the output power is 20W .
VIPER25HN Features
Packaged with 8-DIP (0.300, 7.62mm), 7 Leads
Switching Frequency at 225kHz
With 7 pins
Output Current at 1.5A
VIPER25HN Applications
There are a lot of STMicroelectronics VIPER25HN AC DC Converters applications.
- Smartphones
- Set -Top Box (STB) Power Supply
- Automotive Telematics
- Networking
- Portable audio
- AC?DC USB chargers for Cameras
- Humidifier
- AC/DC LED Driver applications
- Standby power supplies for VCR
- Adapters
