LNK6763E Overview

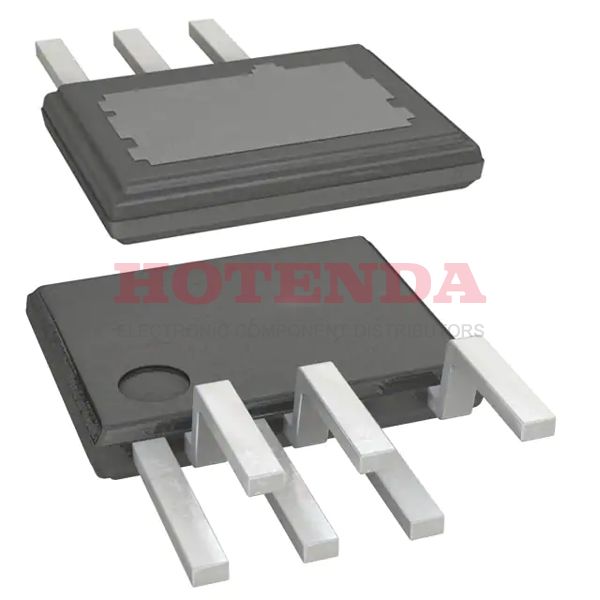

In the package 7-SIP, 6 Leads, Exposed Pad, Formed Leads , the ac to dc converter is embedded.There is a AC/DC power converter of Tube available.A AC/DC converter of this type is mounted in the way of Through Hole .The ac dc converter should be operated at a temperature of -40°C~150°C TJ °C to deliver its optimal performance.The AC DC converter utilizes a type ANALOG CIRCUIT analog IC.As a result, the switching frequency reaches 120kHz~136kHz .Total terminations are 6 .In this ac/dc converter, there are 6 pins.Currently, it is acdc converter of the manufacturer family of LinkSwitch?-HP .The ac to dc conversions can be found in Switching Regulator or Controllers .In this AC to DC transformer, the output current is set to 15μA .Here is the standard for REACH SVHC : No SVHC .An input voltage of 265V is available for powering the AC to DC converter.There is 21W output power generated by a coverter.It is possible to use the AC to DC inverter with an input voltage less than 85V V.An input voltage (AC) should be applied to the AC to DC power converter that falls below 265V volts.
LNK6763E Features
Packaged with 7-SIP, 6 Leads, Exposed Pad, Formed Leads
Switching Frequency at 120kHz~136kHz
With 6 pins
Output Current at 15μA
LNK6763E Applications
There are a lot of Power Integrations LNK6763E AC DC Converters applications.
- ATX/BTX Auxiliary Power
- AC/DC Adaptors/Chargers for Cordless Phone
- Switching AC-DC Adapter
- Adaptors for DSCs
- White goods
- Records
- Dimmers
- Networking
- Laptops
- Smartphones
