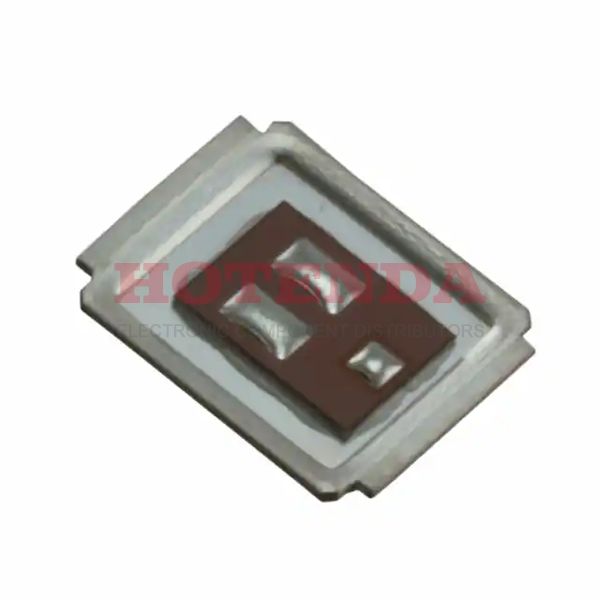

Name: IRF8308MTRPBF
Brand: Infineon Technologies
SKU: IRF8308MTRPBF
Availability: InStock

new-10%

IRF8308MTRPBF

Manufacturer part number:IRF8308MTRPBF

Manufacturer:Infineon Technologies

Description:MOSFET N-CH 30V 27A MX

Case Package:SOT-23

Datasheet:IRF8308MTRPBF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Mounting Type	Surface Mount
Package / Case	DirectFET™ Isometric MX
Surface Mount	YES
Transistor Element Material	SILICON
Operating Temperature	-40°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	2011
Series	HEXFET®
JESD-609 Code	e1
Part Status	Not For New Designs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	Tin/Silver/Copper (Sn/Ag/Cu)
Subcategory	FET General Purpose Power
Technology	MOSFET (Metal Oxide)
Terminal Position	BOTTOM
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	NOT SPECIFIED
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
JESD-30 Code	R-XBCC-N3
Number of Elements	1
Configuration	SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max	2.8W Ta 89W Tc
Operating Mode	ENHANCEMENT MODE
Case Connection	DRAIN
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	2.5m Ω @ 27A, 10V
Vgs(th) (Max) @ Id	2.35V @ 100μA
Input Capacitance (Ciss) (Max) @ Vds	4404pF @ 15V
Current - Continuous Drain (Id) @ 25°C	27A Ta 150A Tc
Gate Charge (Qg) (Max) @ Vgs	42nC @ 4.5V
Drain to Source Voltage (Vdss)	30V
Drive Voltage (Max Rds On,Min Rds On)	4.5V 10V
Vgs (Max)	±20V
Drain Current-Max (Abs) (ID)	27A
Drain-source On Resistance-Max	0.0035Ohm
Pulsed Drain Current-Max (IDM)	212A
DS Breakdown Voltage-Min	30V
Avalanche Energy Rating (Eas)	12 mJ
RoHS Status	ROHS3 Compliant

About IRF8308MTRPBF

The IRF8308MTRPBF from Infineon Technologies is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET N-CH 30V 27A MX.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the IRF8308MTRPBF, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
