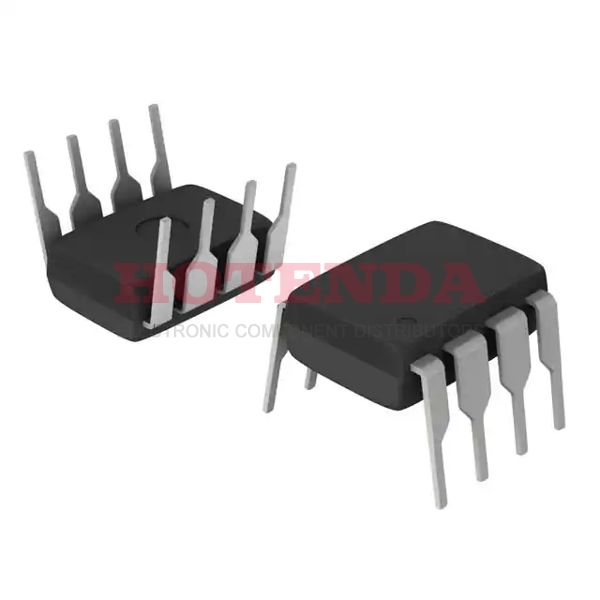

E-L6565N Overview
In the package 8-DIP (0.300, 7.62mm) , the ac to dc converter is embedded.There is a AC/DC power converter of Tube available.The AC/DC converter is mounted in the way of Through Hole .Ideally, the ac dc converter should be operated at a temperature of -40°C~150°C TJ degrees Celsius.Analog ICs of type SWITCHING CONTROLLER are used in this AC DC converter.This AC/DC converter is designed for use within the range of 10.3V~18V supply voltage (Vcc/Vdd).There are a total of 8 terminations in it.On this ac/dc converter, there are 8 pins.A total of 8 pins are present on the ac-dc converter.Through Hole is the recommended mounting method for the ac dc converters.Search similar acdc converters based on L6565 family members.A total of 1 outputs need to be run.Currently, the maximum current that the ac to dc inverter can take is 0.7A .When 3.5mA is reached, AC to DC converter consumes quiescent current.
E-L6565N Features
Packaged with 8-DIP (0.300, 7.62mm)
With 8 pins
E-L6565N Applications
There are a lot of STMicroelectronics E-L6565N AC DC Converters applications.
- Networking
- MP3
- RCC SMPS
- Records
- Standby power supplies for TV
- Cleaners
- Battery chargers for media tablets
- Home appliances
- Portable audio
- AC/DC Adaptors/Chargers for E-books
