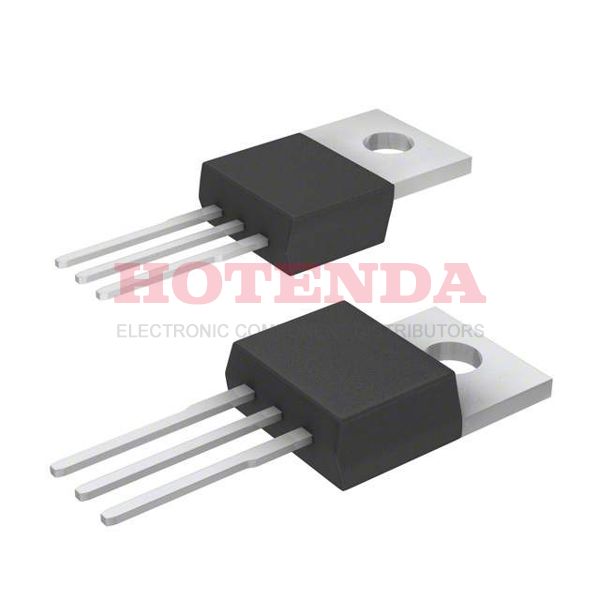

TOP201YN Overview
In the package TO-220-3 , the ac to dc converter is embedded.In Tube case, the ac dc converter is available.There is a mounting point for this AC/DC converter in the way of Through Hole .This ac dc converter should be operated at a temperature of -40°C~150°C TJ °C so that it can deliver its performance.SWITCHING REGULATOR analog ICs are employed in this AC DC converter.At this point, the switching frequency reaches 100kHz .In total, it has 3 terminations.There are 3 pins on the ac-dc converter.It belongs to the family of TOPSwitch? manufacturers.Its output voltage is5.8V .There should be no less than 85V voltage across the converter.There is 265V maximum supply voltage across the converter.
TOP201YN Features
Packaged with TO-220-3
Switching Frequency at 100kHz
TOP201YN Applications
There are a lot of Power Integrations TOP201YN AC DC Converters applications.
- Set Top Boxes (STB)
- Universal Off-Line Power Supplies
- MP3
- Adapters
- Auxiliary Power Supply
- Standby and Auxiliary Power Supplies
- Battery Chargers
- AC?DC USB chargers for Cell Phones
- Air conditioners
- DVD players
