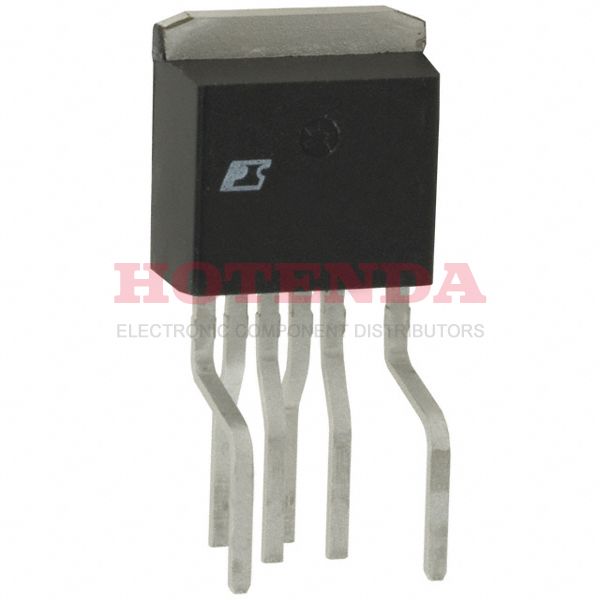

TOP244FN Overview
An embedded ac to dc converter is included in TO-262-7 (Formed Leads), 6 Leads package.Tube case is available for the ac dc converter.The AC/DC converter is mounted in the way of Through Hole .The ac dc converter should be operated at a temperature of -40°C~150°C TJ °C to deliver its optimal performance.A SWITCHING REGULATOR analog integrated circuit is used in this AC DC converter.66kHz~132kHz is the switching frequency.There are a total of 6 terminations.A total of 3 pins are present on the ac-dc converter.This AC to DC converter belongs to the TOPSwitch?-GX family of manufacturers.Switching Regulator or Controllers contains the ac to dc conversions.In this AC to DC transformer, the output voltage is 12V .The maximum current that can be supplied to the ac to dc inverter is 2.16A .A minimum voltage of 85V is required across the converter.Across the converter, the maximum supply voltage is 265V .
TOP244FN Features
Packaged with TO-262-7 (Formed Leads), 6 Leads
Switching Frequency at 66kHz~132kHz
TOP244FN Applications
There are a lot of Power Integrations TOP244FN AC DC Converters applications.
- Z-Wave
- AC/DC LED Driver applications
- USB type-c v1.2 chargers with optional VDM
- Open Frame Switching Power Supply
- Auxiliary Power Supplies
- Low power ac?dc Adapters for Chargers
- Battery Chargers
- Set -Top Box (STB) Power Supply
- AC--DC Adapter
- Air Conditioning
