E-L6565D Overview

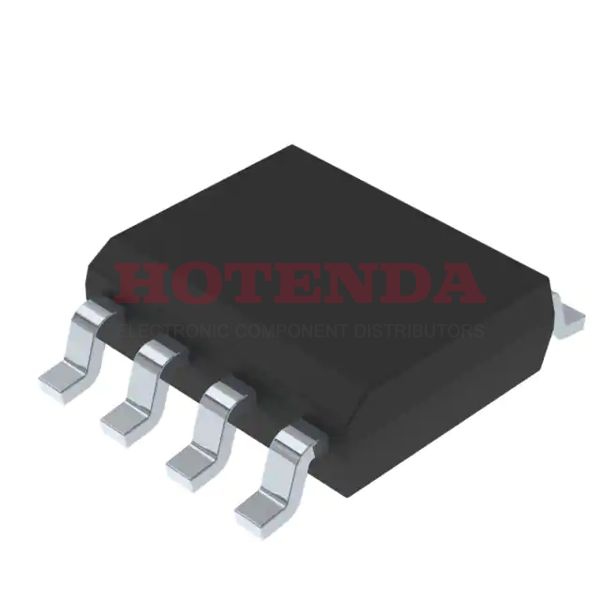

In the package 8-SOIC (0.154, 3.90mm Width) , the ac to dc converter is embedded.The AC/DC power converter is available in Tube .In this case, the AC/DC converter is mounted in the way of Surface Mount .Ideally, the ac dc converter should be operated at a temperature of -40°C~150°C TJ degrees Celsius.The AC DC converter utilizes a type SWITCHING CONTROLLER analog IC.Supply voltage (Vcc/Vdd) does not need to exceed 10.3V~18V .Total terminations are 8 .The ac/dc converter has 8 pins.A total of 8 pins are present on the ac-dc converter.It is suitable for mounting by Surface Mount .You can search similar acdc converters based on L6565 family.In this AC to DC transformer, there are 1 outputs to run.The output current is set to 200mA .SVHC for REACH can be found in the standard No SVHC .When set to 3.5mA , AC to DC converter consumes quiescent current.
E-L6565D Features
Packaged with 8-SOIC (0.154, 3.90mm Width)
With 8 pins
Output Current at 200mA
E-L6565D Applications
There are a lot of STMicroelectronics E-L6565D AC DC Converters applications.
- Adapter/Charger for Cordless Phones
- Switching AC-DC Charger
- 3.3V power supplies
- Dimmers
- Switching AC-DC Adapter
- Power Adaptors
- Home appliances
- Power tools fast chargers with trickle and on/off
- Standby power supplies for TV
- Standby power supplies for VCR
