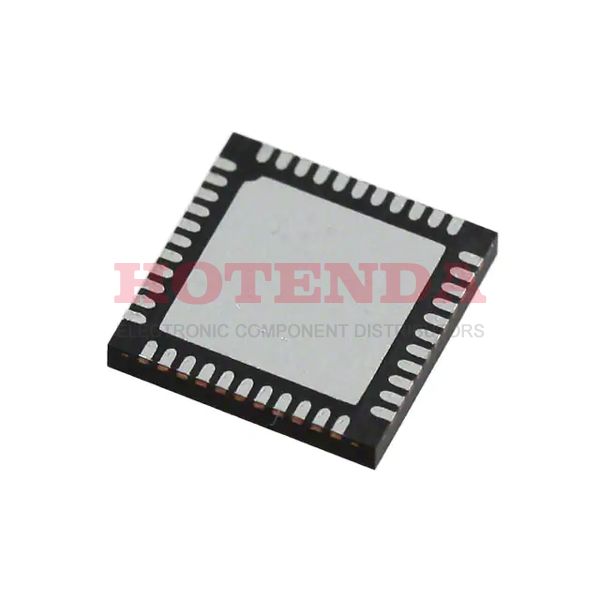

SI5346B-A-GMR Overview
This clock IC is packaged using the Tape & Reel (TR) method. The 44-VFQFN Exposed Pad package includes this clock generator. In it, there are 44 terminations to be found. This time clock generator should be voltaged at 1.8V. A clock generator's input is called LVCMOS, LVDS, LVPECL, Crystal and it is designed as the input for this clock generator. For full access to the electronic component's capabilities, 1 circuits are implemented. A clock-based RF synthesizer that provides a max frequency of 350MHz is available. With the Surface Mount, it is easy to install this electric component on the panel. The digital clock generator incorporates CLOCK GENERATOR, PROCESSOR SPECIFIC uPs, uCs, and peripheral ICs. This clock PLL works with a supply voltage of 1.71V~3.47V. Using the test statistics, it is estimated that the ambient temperature should be set to -40°C~85°C. A frequency synthesizer which is compatible with the CML, HCSL, LVCMOS, LVDS, LVPECL logic levels is presented here. PF synthesizers is equipped with 44 pins. Clock PLL has 4 signal outputs to maximi4e output frequency. For the time clock generator to operate properly, 270mA of supply current are required.
SI5346B-A-GMR Features
Available in the 44-VFQFN Exposed Pad
Supply voltage of 1.8V
SI5346B-A-GMR Applications
There are a lot of Silicon Labs
SI5346B-A-GMR Clock Generators applications.
- Digital circuits
- Wireless base station for LTE, LTE-advanced
- Picocells, femtocells and small cells
- Sampling clocks for ADC and DAC
- 1 Gigabit Ethernet
- 10 Gigabit Ethernet
- FPGA and processor clocks
- Line cards used in telephone exchange
- Fiber Channel
- PCI express cards
