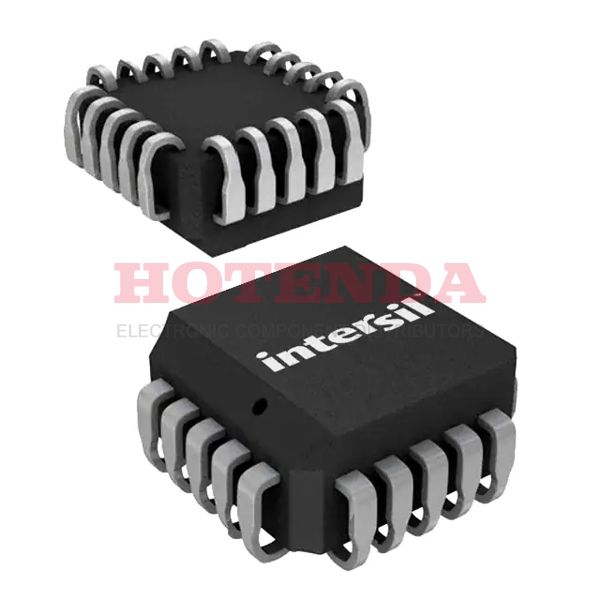

CS82C84AZ96 Overview
In order to package it as a clock IC, the Tape & Reel (TR) package is used. 20-LCC (J-Lead) contains this Clock PLL. As a result of this, we can find 20 terminations. Basically, this time clock generator needs a voltage of 5V. TTL is designed as this clock generator's input. To access the full performance of the electronic component, 1 circuits are implemented. The frequency generator has a maximum frequency of 25MHz. PLL clock is mounted in the way of Surface Mount. There are 4.5V~5.5V different supply voltages that can be provided for this RF synthesizer. Using the test statistics, it is estimated that the ambient temperature should be set to 0°C~70°C. With this clock-generating device, a high-quality clock output frequency of 25MHz can be produced. This electronic component is usually classified as a Clock Generator, Clock Synchronizer, Fanout Distribution component. 82C84A is the base part number for finding related electronic parts.
CS82C84AZ96 Features
Available in the 20-LCC (J-Lead)
Supply voltage of 5V
Output clock frequency (Max) of 25MHz
CS82C84AZ96 Applications
There are a lot of Renesas Electronics America Inc. CS82C84AZ96 Clock Generators applications.
- Frequency Modulation (FM) stereo decoders
- Frequency shifting decodes
- Radio receivers
- Infotainment systems
- Multiplexing communication
- Test and instrumentation equipment
- Clock recovery
- Microprocessor clock multipliers
- Myriad digital applications
- Automatic control system test
