Name: SSW-146-01-T-S
Brand: Samtec Inc.
SKU: SSW-146-01-T-S
Price: 4.28000 USD
Availability: InStock

new-10%

SSW-146-01-T-S

Manufacturer part number:SSW-146-01-T-S

Manufacturer:Samtec Inc.

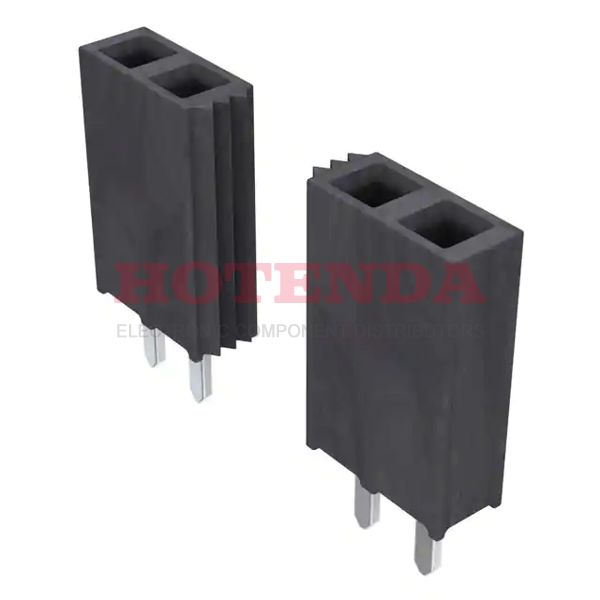

Description:1 Rows Receptacle Solder Phosphor Bronze Through Hole Bulk Tin Liquid Crystal Polymer (LCP) 46 Positions Forked

Case Package:SOT-23

Datasheet:SSW-146-01-T-S Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Plastic
Operating Temperature	-55°C~105°C
Packaging	Bulk
Published	2000
Series	SSW
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
Connector Type	Receptacle
Number of Positions	46
Number of Rows	1
Gender	Female
Additional Feature	TIGER BUY CONTACT
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Voltage - Rated DC	655V
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Forked
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	5.7A per Contact
Terminal Pitch	2.54mm
Insulation Height	0.335 8.51mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Number of Conductors	ONE
Reference Standard	UL, CSA
Voltage - Rated AC	465V
Reliability	COMMERCIAL
Contact Length - Post	0.104 2.64mm
Number Of PCB Rows	1
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.095 inch
UL Flammability Code	94V-0
Housing Color	Black
Lead Length	2.64mm
Body Depth	0.335 inch
Polarization Key	POLARIZED HOUSING
Height	8.51mm
Length	117mm
Width	2.41mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

SSW-146-01-T-S Product Details

SSW-146-01-T-S Overview

It comes in a Receptacle package.Through Hole is the mounting type of the device.We pack the product in a Bulk case.This is from the SSW Series.As well as TIGER BUY CONTACT, to name a few.This part is mounted by Through Hole. -55°C~105°C Operating Temperature is the default.
