SSW-120-22-F-D-VS

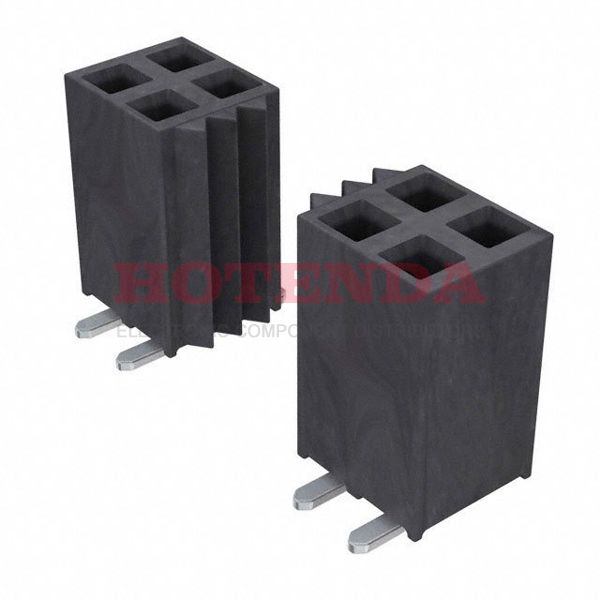

  • SSW-120-22-F-D-VS - 2 Rows Receptacle Solder Phosphor Bronze Surface Mount Tube Gold Liquid Crystal Polymer (LCP) 40 Positions Forked
  • SSW-120-22-F-D-VS - 2 Rows Receptacle Solder Phosphor Bronze Surface Mount Tube Gold Liquid Crystal Polymer (LCP) 40 Positions Forked

SSW-120-22-F-D-VS

SSW-120-22-F-D-VS

Samtec Inc.

2 Rows Receptacle Solder Phosphor Bronze Surface Mount Tube Gold Liquid Crystal Polymer (LCP) 40 Positions Forked

SOT-23

SSW-120-22-F-D-VS Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 3 Weeks
Contact MaterialPhosphor Bronze
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Mounting Option 1 LOCKING
Operating Temperature-55°C~125°C
PackagingTube
Published 2013
Series SSW
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 40
Number of Rows 2
Gender Female
Additional FeatureTIGER BUY
Fastening TypePush-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Forked
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 5.7A per Contact
Total Number of Contacts 40
Insulation Height 0.335 8.51mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Lead Pitch 2.54mm
Contact Finish - Post Tin
PCB Contact Pattern STAGGERED
Body Breadth 0.195 inch
Body Depth 0.385 inch
Mating Contact Pitch 0.1 inch
Insertion Force-Max .834 N
Plating Thickness 3μin
Contact Finish Thickness - Mating 3.00μin 0.076μm
Material Flammability Rating UL94 V-0
Radiation HardeningNo
RoHS StatusROHS3 Compliant
In-Stock:857 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$7.995778$7.995778
10$7.543187$75.43187
100$7.116214$711.6214
500$6.713410$3356.705
1000$6.333405$6333.405

SSW-120-22-F-D-VS Product Details

SSW-120-22-F-D-VS Overview


It comes in Receptacle packaging.The device's mounting type is Surface Mount.In order to package the product, a Tube case is used.It belongs to the SSW Series of products.In addition, there are other features such as TIGER BUY, to mention only a few.The device runs in -55°C~125°C Operating Temperature.

SSW-120-22-F-D-VS Features


SSW series


SSW-120-22-F-D-VS Applications


There are a lot of Samtec Inc.
SSW-120-22-F-D-VS Rectangular Connectors applications.


  • Industrial Automation
  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
