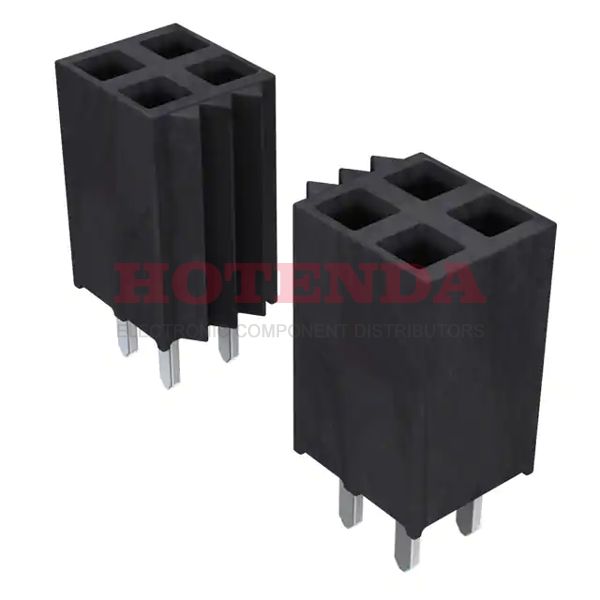

Name: SSW-144-21-S-D
Brand: Samtec Inc.
SKU: SSW-144-21-S-D
Availability: InStock

new-10%

SSW-144-21-S-D

Manufacturer part number:SSW-144-21-S-D

Manufacturer:Samtec Inc.

Description:2 Rows Receptacle Solder Phosphor Bronze Through Hole Bulk Gold Liquid Crystal Polymer (LCP) 88 Positions Forked

Case Package:SOT-23

Datasheet:SSW-144-21-S-D Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Polymer
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2000
Series	SSW
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Discontinued
Termination	Solder
Connector Type	Receptacle
Number of Positions	88
Number of Rows	2
Gender	Female
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Forked
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	5.7A per Contact
Orientation	Straight
Depth	4.95mm
Insulation Height	0.335 8.51mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Number of Conductors	ONE
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.104 2.64mm
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.195 inch
UL Flammability Code	94V-0
Housing Color	Black
Contact Resistance	10mOhm
Max Voltage Rating (AC)	550V
Max Current Rating	6.9A
Polarization Key	POLARIZED HOUSING
Durability	100 Cycles
Insertion Force-Max	.834 N
Length	112.27mm
Width	4.95mm
Plating Thickness	30μin
Contact Finish Thickness - Mating	30.0μin 0.76μm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

SSW-144-21-S-D Product Details

SSW-144-21-S-D Overview

It comes in Receptacle packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the SSW Series of products.The part is mounted by Through Hole.The device runs in -55°C~125°C Operating Temperature.
