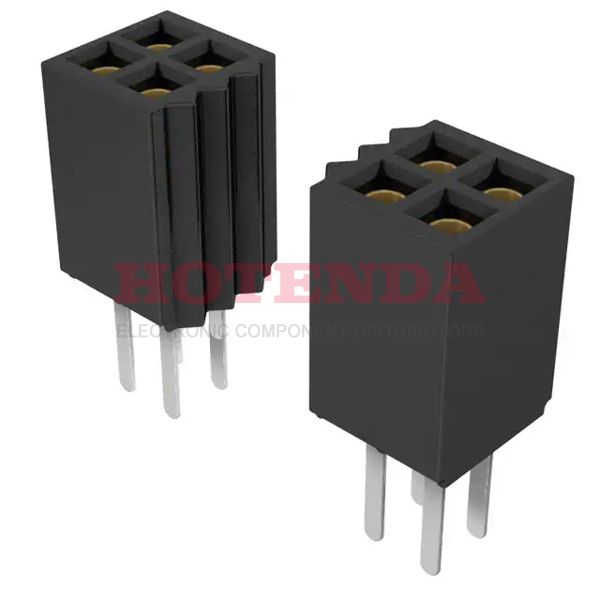

Name: SFMC-111-T1-SM-D
Brand: Samtec Inc.
SKU: SFMC-111-T1-SM-D
Availability: InStock

new-10%

SFMC-111-T1-SM-D

Manufacturer part number:SFMC-111-T1-SM-D

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderPhosphor BronzeThrough HoleTubeGoldLiquid Crystal Polymer (LCP)22 PositionsFemale Socket

Case Package:SOT-23

Datasheet:SFMC-111-T1-SM-D Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	Tiger Eye™ SFMC
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Termination	Solder
Connector Type	Receptacle
Number of Positions	22
Number of Rows	2
Gender	Female
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	2.9A per Contact
Insulation Height	0.180 4.57mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Row Spacing - Mating	0.050 (1.27mm)
Contact Length - Post	0.120 3.05mm
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30.0μin 0.76μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

SFMC-111-T1-SM-D Product Details

SFMC-111-T1-SM-D Overview

You'll get Receptacle packages.It's mounted Through Hole.The product is packaged in a Tube case.Specifically, it is one of the products in the Tiger Eye™ SFMC Series.You've got Through Hole mounted on the part.The device is operating at -55°C~125°C Operating Temperature.
