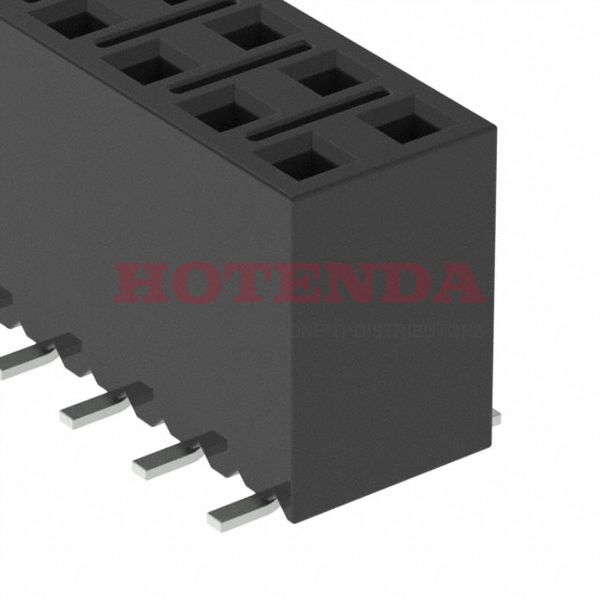

Name: SSM-108-F-DV-BE-K
Brand: Samtec Inc.
SKU: SSM-108-F-DV-BE-K
Price: 4.07000 USD
Availability: InStock

new-10%

SSM-108-F-DV-BE-K

Manufacturer part number:SSM-108-F-DV-BE-K

Manufacturer:Samtec Inc.

Description:2 RowsReceptacle, Bottom EntrySolderPhosphor BronzeSurface MountBulkGoldLiquid Crystal Polymer (LCP)16 PositionsFemale Socket

Case Package:SOT-23

Datasheet:SSM-108-F-DV-BE-K Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	SSM
Feature	Pick and Place
Part Status	Active
Termination	Solder
Connector Type	Receptacle, Bottom Entry
Number of Positions	16
Number of Rows	2
Voltage - Rated	405VAC 572VDC
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	5.2A per Contact
Orientation	Vertical
Insulation Height	0.290 7.37mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3.00μin 0.076μm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

SSM-108-F-DV-BE-K Product Details

SSM-108-F-DV-BE-K Overview

The packaging contains Receptacle, Bottom Entry.This device has a Surface Mount mounting type.This product is packaged in a case marked Bulk.This product is from the SSM Series.Its Pick and Place feature renders it more powerful in many ways.-55°C~125°C Operating Temperature is used by the device.
