Name: 0447641202
Brand: Molex
SKU: 0447641202
Price: 7.21000 USD
Availability: InStock

new

0447641202

Manufacturer part number:0447641202

Manufacturer:Molex

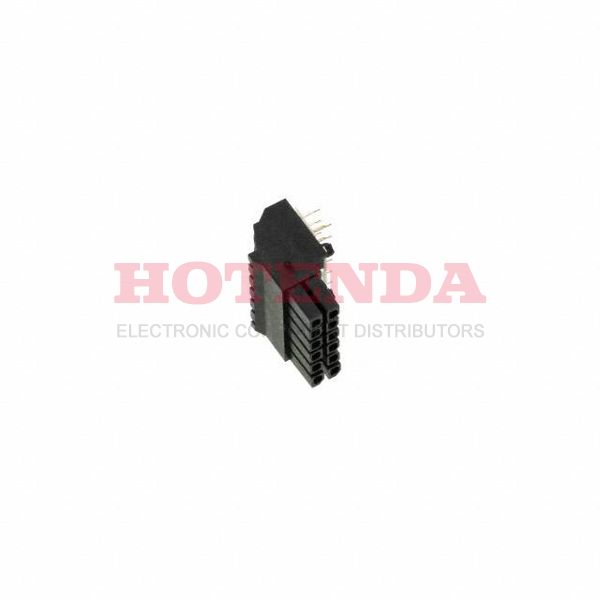

Description:2 Rows Receptacle Solder Phosphor Bronze Through Hole, Right Angle Tray Gold Liquid Crystal Polymer (LCP), Glass Filled 12 Positions Female Socket

Case Package:SOT-23

Datasheet:0447641202 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature	-40°C~105°C
Packaging	Tray
Series	Micro-Fit 3.0 BMI 44764
JESD-609 Code	e3
Feature	Board Guide
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	12
Applications	General Purpose, Telecommunications
Number of Rows	2
Voltage - Rated	600VAC
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Current Rating (Amps)	5A
Terminal Pitch	3mm
Insulation Height	0.402 10.20mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.118 3.00mm
Insulation Color	Black
Row Spacing - Mating	0.118 (3.00mm)
Contact Length - Post	0.155 3.94mm
Contact Finish - Post	Tin
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	15.0μin 0.38μm
Contact Finish Thickness - Post	100.0μin 2.54μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0447641202 Product Details

0447641202 Overview

A Receptacle package is included with it.Its mounting type is Through Hole, Right Angle.Packaging is performed using a Tray case.It is part of the Micro-Fit 3.0 BMI 44764 Series of products.It is possible for the device to be used for the application General Purpose, Telecommunications.A number of features make it more powerful because of its Board Guide feature.There is no operating temperature for the device.
