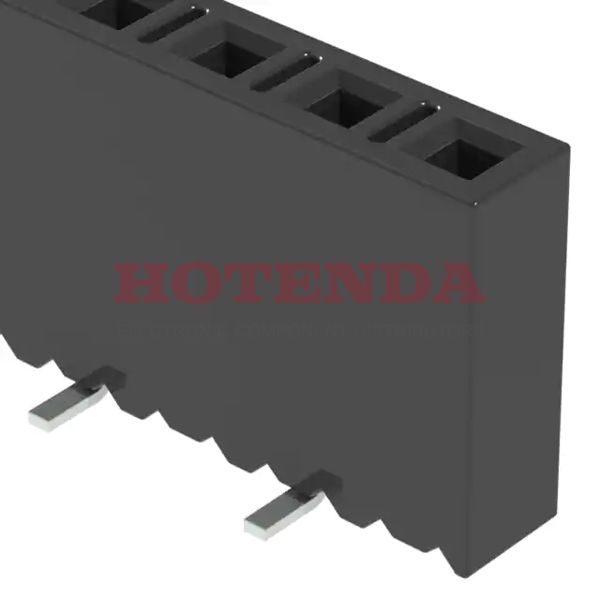

Name: SSM-107-L-SV-BE
Brand: Samtec Inc.
SKU: SSM-107-L-SV-BE
Price: 2.78000 USD
Availability: InStock

new-10%

SSM-107-L-SV-BE

Manufacturer part number:SSM-107-L-SV-BE

Manufacturer:Samtec Inc.

Description:1 RowsReceptacle, Bottom EntrySolderPhosphor BronzeSurface MountBulkGoldLiquid Crystal Polymer (LCP)7 PositionsFemale Socket

Case Package:SOT-23

Datasheet:SSM-107-L-SV-BE Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Polymer
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2014
Series	SSM
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle, Bottom Entry
Number of Positions	7
Number of Rows	1
Gender	Female
Voltage - Rated	405VAC 572VDC
Additional Feature	E.L.P., TIGER CLAW
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	5.2A per Contact
Total Number of Contacts	7
Orientation	Straight
Depth	2.54mm
Insulation Height	0.290 7.37mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Contact Finish - Post	Tin
Contact Resistance	10mOhm
Max Voltage Rating (AC)	475V
Max Current Rating	6.9A
Length	17.78mm
Contact Finish Thickness - Mating	10.0μin 0.25μm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

SSM-107-L-SV-BE Product Details

SSM-107-L-SV-BE Overview

You get it in Receptacle, Bottom Entry packaging.Mounting type is Surface Mount.It is necessary to use a Bulk case for packaging the product.The product is a member of the SSM Series.There are also features like E.L.P., TIGER CLAW, just to name a few.In this case, the device operates at -55°C~125°C Operating Temperature.
