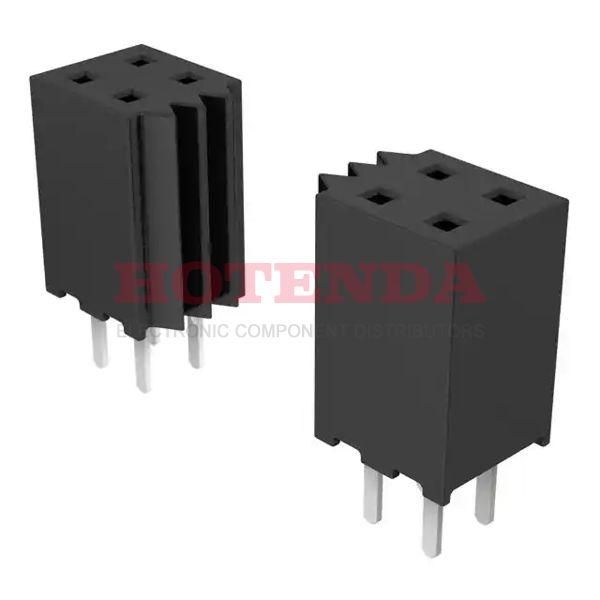

Name: SQW-130-01-H-D
Brand: Samtec Inc.
SKU: SQW-130-01-H-D
Availability: InStock

new-10%

SQW-130-01-H-D

Manufacturer part number:SQW-130-01-H-D

Manufacturer:Samtec Inc.

Description:2 Rows Receptacle Solder Phosphor Bronze Through Hole Tube Gold Liquid Crystal Polymer (LCP) 60 Positions Forked

Case Package:SOT-23

Datasheet:SQW-130-01-H-D Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	SQW
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	60
Number of Rows	2
Gender	Female
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Forked
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.8A per Contact
Insulation Height	0.250 6.35mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Row Spacing - Mating	0.079 (2.00mm)
Contact Length - Post	0.090 2.29mm
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	3.00μin 0.076μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

SQW-130-01-H-D Product Details

SQW-130-01-H-D Overview

Currently, it is packaged in Receptacle.Mounting type Through Hole is assigned to the device.Packaging the product involves using a Tube case.Among the products in the SQW Series, it is one of the most popular.Through Hole is the mounting point for the part.-55°C~125°C Operating Temperature is used by the device.
