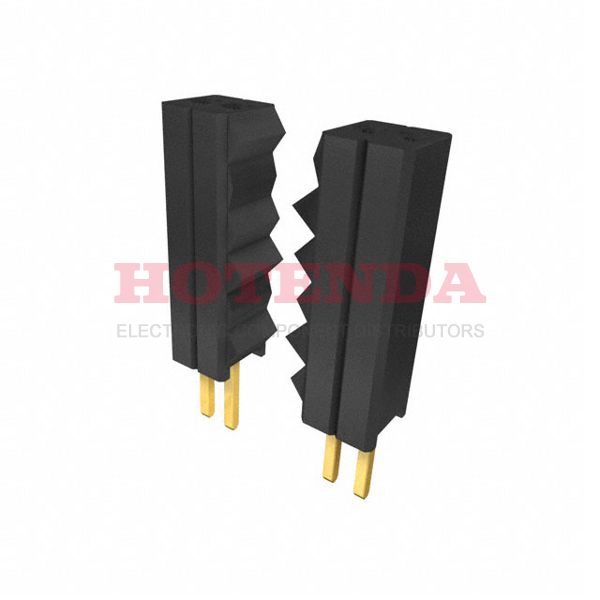

Name: M52-5014045
Brand: Harwin Inc.
SKU: M52-5014045
Availability: InStock

new-10%

M52-5014045

Manufacturer part number:M52-5014045

Manufacturer:Harwin Inc.

Description:1 Rows Receptacle Solder Phosphor Bronze Through Hole Tube Gold Polyamide (PA9T), Nylon 9T 40 Positions Forked

Case Package:SOT-23

Datasheet:M52-5014045 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	SIL
Contact Shape	Rectangular
Insulation Material	Polyamide (PA9T), Nylon 9T
Weight	2.687988g
Operating Temperature	-40°C~105°C
Packaging	Tube
Published	2012
Series	Archer M52
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	40
Applications	General Purpose, Medical, Telecommunications
Number of Rows	1
Additional Feature	ROHS COMPLIANT
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Forked
Mixed Contacts	NO
Current Rating (Amps)	1A
Insulation Height	0.335 8.51mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Body Length or Diameter	2 inch
Contact Length - Post	0.110 2.79mm
Number Of PCB Rows	1
Body Breadth	0.098 inch
Contact Gender	Female
UL Flammability Code	94V-0
Body Depth	0.335 inch
Contact Resistance	30mOhm
Mating Contact Pitch	0.05 inch
Durability	300 Cycles
Withdrawl Force-Min	.973 N
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

M52-5014045 Product Details

M52-5014045 Overview

A Receptacle packaging is included.It's mounted Through Hole.We use a Tube case to package the product.It's from the Archer M52 Series.There are also other features like ROHS COMPLIANT, to name a few.An enclosed device is contained in the package with the SIL.The device could be used for General Purpose, Medical, Telecommunications.It's mounted by Through Hole.-40°C~105°C Operating Temperature is what the device runs at.
