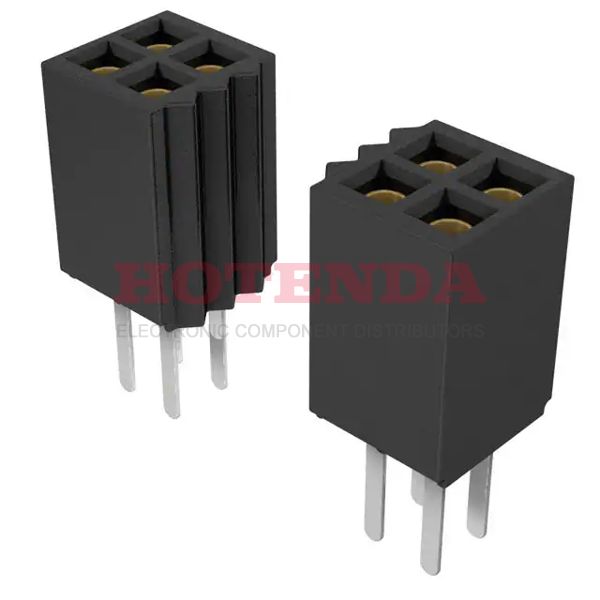

Name: SFMC-109-03-S-D
Brand: Samtec Inc.
SKU: SFMC-109-03-S-D
Price: 8.69000 USD
Availability: InStock

new

SFMC-109-03-S-D

Manufacturer part number:SFMC-109-03-S-D

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderBeryllium CopperThrough HoleTubeGoldLiquid Crystal Polymer (LCP)18 PositionsFemale Socket

Case Package:SOT-23

Datasheet:SFMC-109-03-S-D Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Polymer
Operating Temperature	-55°C~125°C
Packaging	Tube
Published	2006
Series	Tiger Eye™ SFMC
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	18
Number of Rows	2
Additional Feature	TIGER EYE CONTACT
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	2.9A per Contact
Orientation	Straight
Depth	3.05mm
Insulation Height	0.180 4.57mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Row Spacing - Mating	0.050 (1.27mm)
Contact Length - Post	0.075 1.91mm
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Housing Color	Black
Contact Resistance	15mOhm
Mating Contact Pitch	0.05 inch
Max Current Rating	2A
Durability	10000 Cycles
Insertion Force-Max	.695 N
Withdrawl Force-Min	.556 N
Length	11.81mm
Plating Thickness	30μin
Contact Finish Thickness - Mating	30.0μin 0.76μm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

SFMC-109-03-S-D Product Details

SFMC-109-03-S-D Overview

The product comes in a package of Receptacle.Mounting type Through Hole is selected for the device.It is necessary to use a Tube case for packaging the product.It's from the Tiger Eye™ SFMC Series.There are also other features such as TIGER EYE CONTACT, to name only a few.Part Through Hole is mounted to the part.-55°C~125°C Operating Temperature is used by the device.
