Name: 89898-302LF
Brand: Amphenol ICC (FCI)
SKU: 89898-302LF
Price: 0.99000 USD
Availability: InStock

new-10%

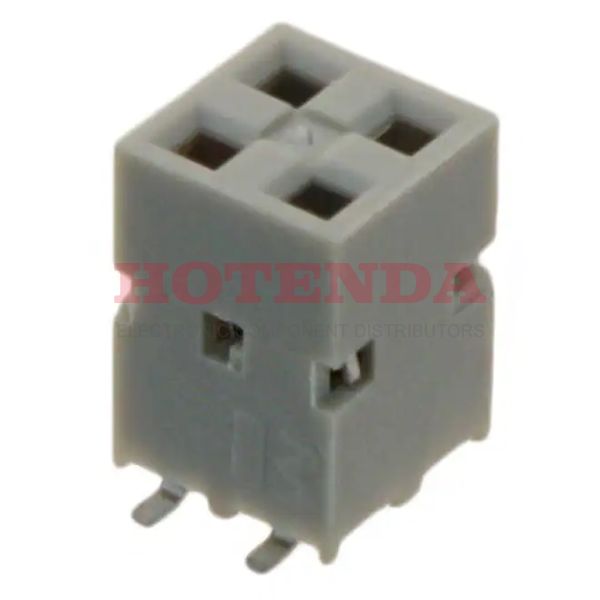

89898-302LF

Manufacturer part number:89898-302LF

Manufacturer:Amphenol ICC (FCI)

Description:2 RowsReceptacle, Bottom or Top EntrySolderPhosphor BronzeSurface MountBulkGoldThermoplastic, Glass Filled4 PositionsFemale Socket

Case Package:SOT-23

Datasheet:89898-302LF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Contact Material	Phosphor Bronze
Contact Plating	Gold
Mount	Surface Mount
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Thermoplastic, Glass Filled
Housing Material	Thermoplastic
Packaging	Bulk
Published	2006
Series	Dubox™
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle, Bottom or Top Entry
Number of Positions	4
Max Operating Temperature	125°C
Min Operating Temperature	-65°C
Color	Grey
Applications	Automotive, General Purpose, Industrial, Telecommunications
Number of Rows	2
Gender	Female
Voltage - Rated	1kV
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Female Socket
Pitch	2.54mm
Orientation	Straight
Depth	5.08mm
Insulation Height	0.275 6.99mm
Style	Board to Board
Number of Positions Loaded	All
Current Rating	2A
Pitch - Mating	0.100 2.54mm
Insulation Color	Gray
Row Spacing - Mating	0.100 (2.54mm)
Number of Contacts	4
Contact Finish - Post	Tin
Housing Color	Grey
Contact Resistance	20mOhm
Insulation Resistance	100GOhm
Max Voltage Rating (AC)	1kV
Height	7.5mm
Length	5mm
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	78.7μin 2.00μm
Stack Height (Mating)	10.81mm
Stack Height	7mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant

89898-302LF Product Details

89898-302LF Overview

Receptacle, Bottom or Top Entry packaging is included.This device has a Surface Mount mounting type.To package the product, a Bulk case is used.Among the products in the Dubox™ Series, it is one of the most popular.If it is to be used, it should be kept at a temperature below 125°C.Minimum temperature is -65°C.The device could be used for Automotive, General Purpose, Industrial, Telecommunications.Mounted by Surface Mount.
