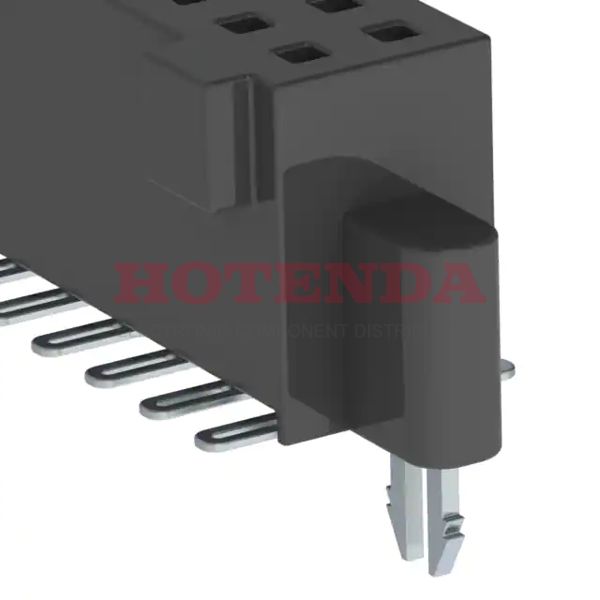

Name: SFM-120-T2-LM-D-LC-K
Brand: Samtec Inc.
SKU: SFM-120-T2-LM-D-LC-K
Availability: InStock

new-10%

SFM-120-T2-LM-D-LC-K

Manufacturer part number:SFM-120-T2-LM-D-LC-K

Manufacturer:Samtec Inc.

Description:2 Rows Receptacle Solder Phosphor Bronze Surface Mount Bulk Gold Liquid Crystal Polymer (LCP) 40 Positions Female Socket

Case Package:SOT-23

Datasheet:SFM-120-T2-LM-D-LC-K Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2013
Series	Tiger Eye™ SFM
Feature	Board Lock, Pick and Place
Part Status	Active
Termination	Solder
Connector Type	Receptacle
Number of Positions	40
Number of Rows	2
Gender	Female
Voltage - Rated	250VAC
Additional Feature	POLARIZED
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.2A per Contact
Total Number of Contacts	40
Insulation Height	0.185 4.70mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Row Spacing - Mating	0.050 (1.27mm)
Contact Finish - Post	Tin
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	10.0μin 0.25μm
Stack Height (Mating)	6.15mm 6.30mm 7.92mm 8.08mm 9.70mm 9.86mm 11.61mm 11.76mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

SFM-120-T2-LM-D-LC-K Product Details

SFM-120-T2-LM-D-LC-K Overview

The packaging contains Receptacle.There is a Surface Mount mounting type for the device.This product is packaged in a case marked Bulk.Product number Tiger Eye™ SFM belongs to the Tiger Eye™ SFM Series.Further, there are features such as POLARIZED, to name only a few.In many ways, it is more powerful due to its Board Lock, Pick and Place feature.This device operates at a temperature of -55°C~125°C.
