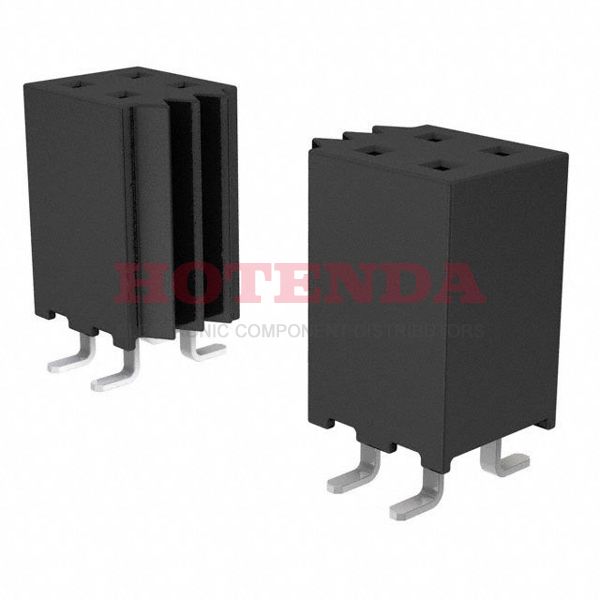

Name: SQW-113-01-FM-D-VS-K-TR
Brand: Samtec Inc.
SKU: SQW-113-01-FM-D-VS-K-TR
Availability: InStock

new-10%

SQW-113-01-FM-D-VS-K-TR

Manufacturer part number:SQW-113-01-FM-D-VS-K-TR

Manufacturer:Samtec Inc.

Description:SQW-113-01-FM-D-VS-K-TR datasheet pdf and Rectangular Connectors - Headers, Receptacles, Female Sockets product details from Samtec Inc. stock available on our website

Case Package:SOT-23

Datasheet:SQW-113-01-FM-D-VS-K-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	SQW
JESD-609 Code	e3
Feature	Pick and Place
Part Status	Active
Termination	Solder
Connector Type	Receptacle
Number of Positions	26
Number of Rows	2
Gender	Female
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Forked
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.8A per Contact
Total Number of Contacts	26
Insulation Height	0.300 7.62mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Row Spacing - Mating	0.079 (2.00mm)
Contact Finish - Post	Tin
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	3.00μin 0.076μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

SQW-113-01-FM-D-VS-K-TR Product Details

SQW-113-01-FM-D-VS-K-TR Overview

The packaging contains Receptacle.Mounting type is Surface Mount.It is necessary to use a Tape & Reel (TR) case for packaging the product.Among the products in the SQW Series, it is one of the most popular.This feature renders it more powerful in a number of ways because of its Pick and Place feature.This device operates at a temperature of -55°C~125°C.
