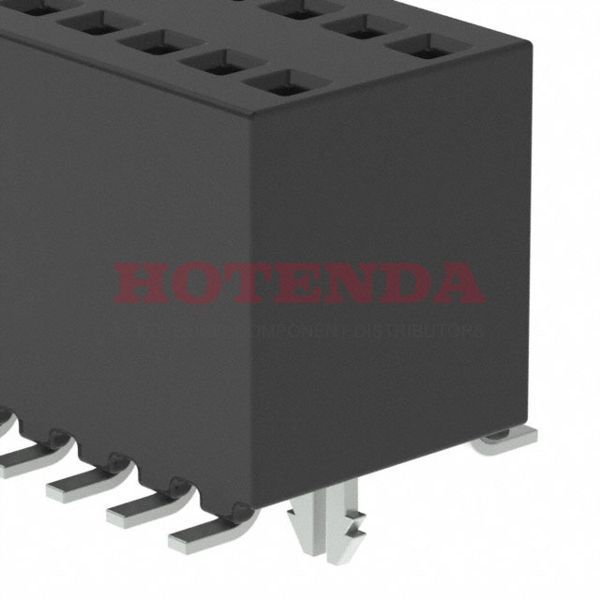

Name: RSM-110-02-S-D-LC-K-TR
Brand: Samtec Inc.
SKU: RSM-110-02-S-D-LC-K-TR
Availability: InStock

new-10%

RSM-110-02-S-D-LC-K-TR

Manufacturer part number:RSM-110-02-S-D-LC-K-TR

Manufacturer:Samtec Inc.

Description:2 Rows Receptacle Solder Phosphor Bronze Surface Mount Tape & Reel (TR) Gold Liquid Crystal Polymer (LCP) 20 Positions Female Socket

Case Package:SOT-23

Datasheet:RSM-110-02-S-D-LC-K-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	RSM
Feature	Board Lock, Pick and Place
Part Status	Active
Termination	Solder
Connector Type	Receptacle
Number of Positions	20
Number of Rows	2
Gender	Female
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	3.1A per Contact
Insulation Height	0.240 6.10mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30.0μin 0.76μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

RSM-110-02-S-D-LC-K-TR Product Details

RSM-110-02-S-D-LC-K-TR Overview

This product is packaged in a Receptacle cartonThis device's mounting type is Surface Mount.It's packaged in a Tape & Reel (TR) case.RSM Series product.Its Board Lock, Pick and Place feature makes it more powerful in a number of ways.Running in -55°C~125°C Operating Temperature.
