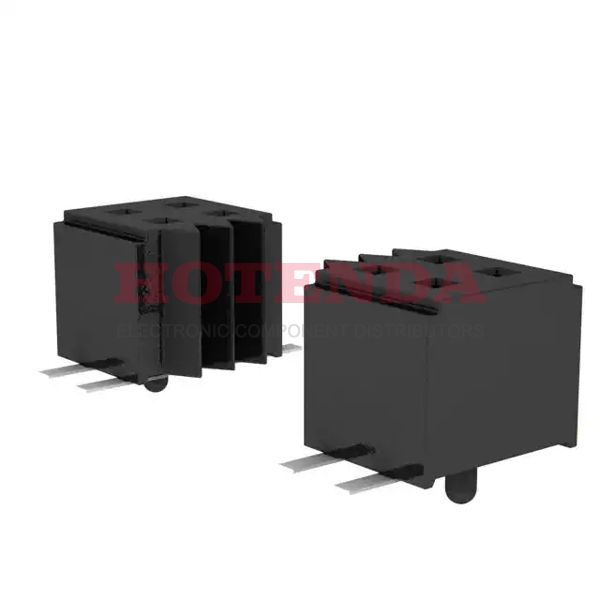

Name: CLM-107-02-LM-D-A-TR
Brand: Samtec Inc.
SKU: CLM-107-02-LM-D-A-TR
Availability: InStock

new-10%

CLM-107-02-LM-D-A-TR

Manufacturer part number:CLM-107-02-LM-D-A-TR

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderPhosphor BronzeSurface MountTape & Reel (TR)GoldLiquid Crystal Polymer (LCP)14 PositionsFemale Socket

Case Package:SOT-23

Datasheet:CLM-107-02-LM-D-A-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	CLM
JESD-609 Code	e3
Feature	Board Guide
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	14
Number of Rows	2
Gender	Female
Additional Feature	LOW PROFILE
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	2.8A per Contact
Total Number of Contacts	14
Terminal Pitch	1mm
Insulation Height	0.084 2.14mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.039 1.00mm
Insulation Color	Black
Row Spacing - Mating	0.039 (1.00mm)
Contact Finish - Post	Tin
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	10.0μin 0.25μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

CLM-107-02-LM-D-A-TR Product Details

CLM-107-02-LM-D-A-TR Overview

It comes in a Receptacle package.Its mounting type is Surface Mount.This product is packaged in a case marked Tape & Reel (TR).There is a product in the CLM Series.To name a few, there is also LOW PROFILE.Its Board Guide feature makes it more powerful in a number of ways.Running in -55°C~125°C Operating Temperature.
