Name: MMS-112-01-F-SV-01
Brand: Samtec Inc.
SKU: MMS-112-01-F-SV-01
Availability: InStock

new-10%

MMS-112-01-F-SV-01

Manufacturer part number:MMS-112-01-F-SV-01

Manufacturer:Samtec Inc.

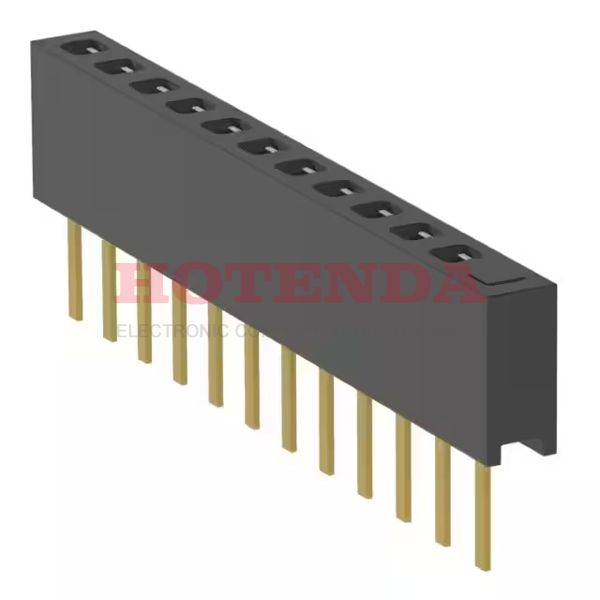

Description:1 Rows Receptacle Solder Phosphor Bronze Through Hole Tube Gold Liquid Crystal Polymer (LCP) 12 Positions Female Socket

Case Package:SOT-23

Datasheet:MMS-112-01-F-SV-01 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	MMS
Part Status	Active
Termination	Solder
Connector Type	Receptacle
Number of Positions	12
Number of Rows	1
Additional Feature	POLARIZED
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.9A per Contact
Terminal Pitch	2mm
Insulation Height	0.175 4.45mm
Style	Board to Board or Cable
Number of Positions Loaded	11
Reach Compliance Code	compliant
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Contact Length - Post	0.115 2.92mm
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3.00μin 0.076μm

MMS-112-01-F-SV-01 Product Details

MMS-112-01-F-SV-01 Overview

It comes in Receptacle packaging.The device's mounting type is Through Hole.In order to package the product, a Tube case is used.It belongs to the MMS Series of products.In addition, there are other features such as POLARIZED, to mention only a few.The device runs in -55°C~125°C Operating Temperature.
