Name: BCS-132-L-S-HE-014
Brand: Samtec Inc.
SKU: BCS-132-L-S-HE-014
Availability: InStock

new-10%

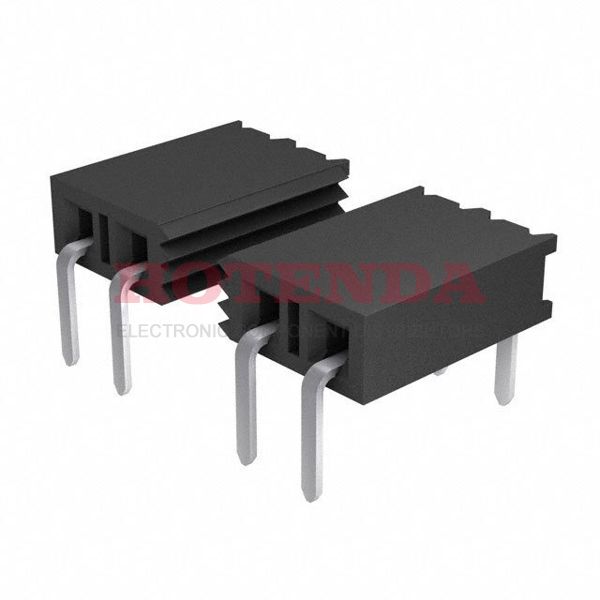

BCS-132-L-S-HE-014

Manufacturer part number:BCS-132-L-S-HE-014

Manufacturer:Samtec Inc.

Description:1 RowsReceptacleSolderPhosphor BronzeThrough Hole, Right AngleTubeGoldLiquid Crystal Polymer (LCP), Glass Filled32 PositionsFemale Socket

Case Package:SOT-23

Datasheet:BCS-132-L-S-HE-014 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	Tiger Claw™ BCS
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	32
Number of Rows	1
Voltage - Rated	475VAC
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	4.6A per Contact
Terminal Pitch	2.54mm
Insulation Height	0.110 2.79mm
Style	Board to Board
Number of Positions Loaded	31
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Body Length or Diameter	3.2 inch
Contact Length - Post	0.125 3.18mm
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	STAGGERED
UL Flammability Code	94V-0
Insulation Resistance	5000000000Ohm
Polarization Key	POLAR PIN POSITION
Dielectric Withstanding Voltage	375VAC V
PCB Contact Row Spacing	7.874 mm
Durability	500 Cycles
Withdrawl Force-Min	.834 N
Contact Finish Thickness - Mating	10.0μin 0.25μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

BCS-132-L-S-HE-014 Product Details

BCS-132-L-S-HE-014 Overview

This product is packaged in a Receptacle box.The mounting type of the device is Through Hole, Right Angle.We pack the product in a Tube case.This product is part of the Tiger Claw™ BCS Series.Device runs in -55°C~125°C operating temperature.
