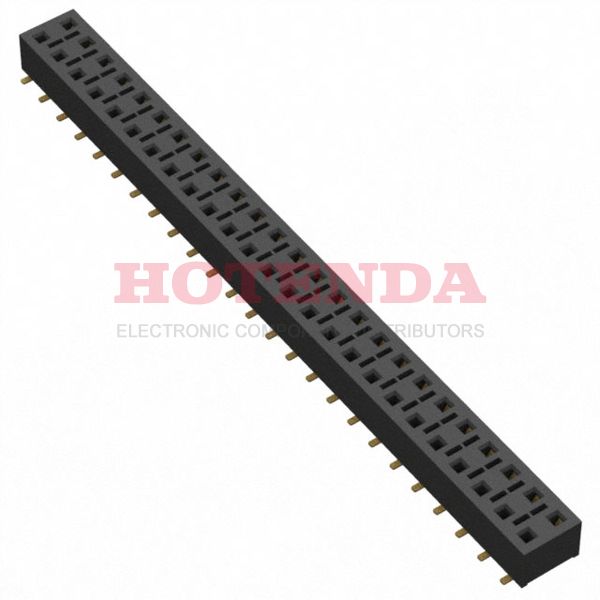

Name: HLE-125-02-H-DV
Brand: Samtec Inc.
SKU: HLE-125-02-H-DV
Availability: InStock

new-10%

HLE-125-02-H-DV

Manufacturer part number:HLE-125-02-H-DV

Manufacturer:Samtec Inc.

Description:2 Rows Receptacle Solder Beryllium Copper Surface Mount Tube Gold Liquid Crystal Polymer (LCP) 50 Positions Female Socket

Case Package:SOT-23

Datasheet:HLE-125-02-H-DV Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	HLE
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Termination	Solder
Connector Type	Receptacle
Number of Positions	50
Number of Rows	2
Gender	Female
Voltage - Rated	400VAC
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	4.1A per Contact
Total Number of Contacts	50
Insulation Height	0.144 3.66mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	3.00μin 0.076μm
RoHS Status	ROHS3 Compliant

HLE-125-02-H-DV Product Details

HLE-125-02-H-DV Overview

Packaging is Receptacle.Surface Mount is the mounting type.Packaging for the product is carried out via a Tube case.As a product of the HLE Series, it can be found in this category.The device is operating at -55°C~125°C Operating Temperature.
