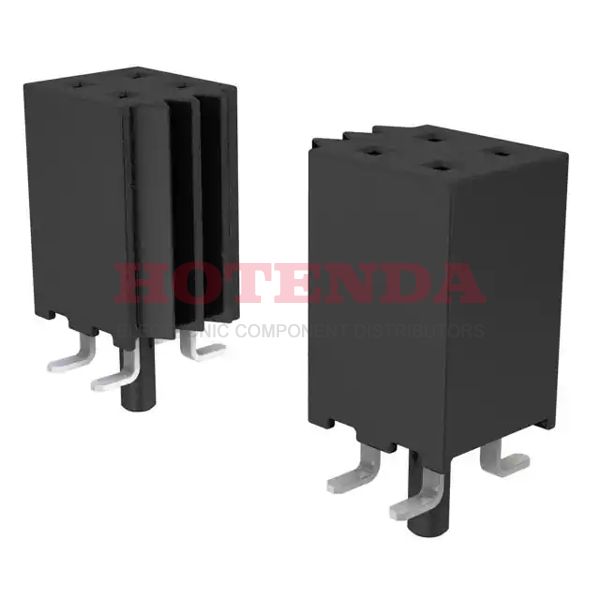

Name: SQW-120-01-LM-D-VS-A-040-K-TR
Brand: Samtec Inc.
SKU: SQW-120-01-LM-D-VS-A-040-K-TR
Availability: InStock

new-10%

SQW-120-01-LM-D-VS-A-040-K-TR

Manufacturer part number:SQW-120-01-LM-D-VS-A-040-K-TR

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderPhosphor BronzeSurface MountTape & Reel (TR)GoldLiquid Crystal Polymer (LCP)40 PositionsForked

Case Package:SOT-23

Datasheet:SQW-120-01-LM-D-VS-A-040-K-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Published	2015
Series	SQW
Feature	Board Guide, Pick and Place
Part Status	Active
Termination	Solder
Connector Type	Receptacle
Number of Positions	40
Number of Rows	2
Gender	Female
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Forked
Current Rating (Amps)	3.8A per Contact
Insulation Height	0.300 7.62mm
Style	Board to Board or Cable
Number of Positions Loaded	39
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Row Spacing - Mating	0.079 (2.00mm)
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10.0μin 0.25μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

SQW-120-01-LM-D-VS-A-040-K-TR Product Details

SQW-120-01-LM-D-VS-A-040-K-TR Overview

It comes in Receptacle packaging.This device is mounted in the Surface Mount position.A Tape & Reel (TR) case is used for packaging.As a product of the SQW Series, it can be found in this category.With its Board Guide, Pick and Place feature, it is more powerful in many ways.Running in -55°C~125°C Operating Temperature.
