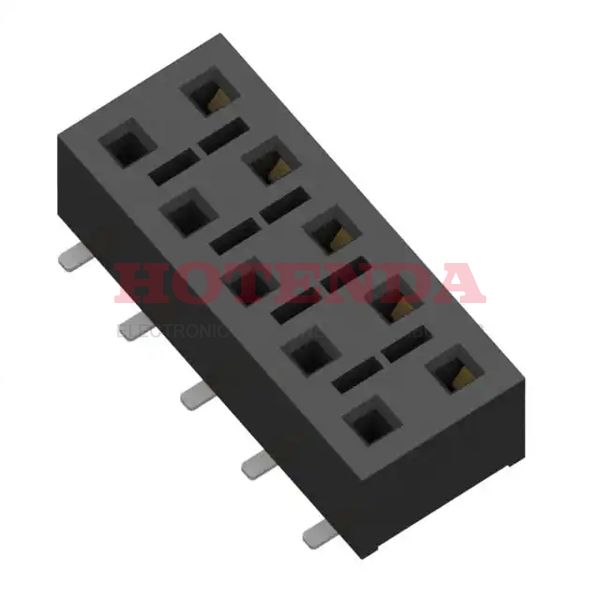

Name: HLE-105-02-F-DV-BE-K-TR
Brand: Samtec Inc.
SKU: HLE-105-02-F-DV-BE-K-TR
Price: 3.66000 USD
Availability: InStock

new-10%

HLE-105-02-F-DV-BE-K-TR

Manufacturer part number:HLE-105-02-F-DV-BE-K-TR

Manufacturer:Samtec Inc.

Description:2 Rows Receptacle, Bottom Entry Solder Beryllium Copper Surface Mount Tape & Reel (TR) Gold Liquid Crystal Polymer (LCP) 10 Positions Female Socket

Case Package:SOT-23

Datasheet:HLE-105-02-F-DV-BE-K-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Polymer
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Published	2016
Series	HLE
JESD-609 Code	e3
Feature	Pick and Place
Part Status	Active
Termination	Solder
Connector Type	Receptacle, Bottom Entry
Number of Positions	10
Number of Rows	2
Gender	Female
Voltage - Rated	400VAC
Additional Feature	BOTTOM ENTRY, TIGER BEAM CONTACT
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	4.1A per Contact
Total Number of Contacts	10
Orientation	Straight
Depth	5.08mm
Insulation Height	0.144 3.66mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Finish - Post	Tin
Max Voltage Rating (AC)	400V
Length	12.7mm
Contact Finish Thickness - Mating	3.00μin 0.076μm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

HLE-105-02-F-DV-BE-K-TR Product Details

HLE-105-02-F-DV-BE-K-TR Overview

Packaging for this item is Receptacle, Bottom Entry.There is a mounting type of Surface Mount for this device.It is necessary to use a Tape & Reel (TR) case for packaging the product.This product is part of the HLE Series.Moreover, there are a number of other features, including BOTTOM ENTRY, TIGER BEAM CONTACT, to name just a few.In many ways, its Pick and Place feature makes it more powerful.In this case, the device operates at -55°C~125°C Operating Temperature.
