Name: 5025851170
Brand: Molex
SKU: 5025851170
Price: 0.75000 USD
Availability: InStock

new-10%

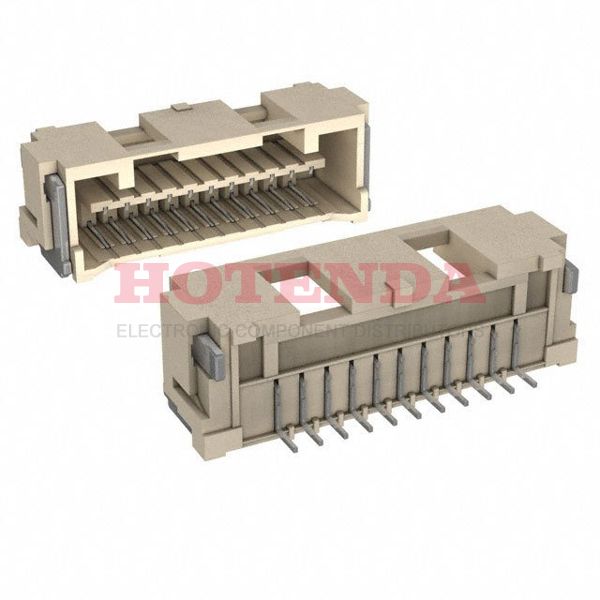

5025851170

Manufacturer part number:5025851170

Manufacturer:Molex

Description:1 RowsReceptacleSolderCopper AlloySurface Mount, Right AngleTape & Reel (TR)TinResin11 PositionsForked

Case Package:SOT-23

Datasheet:5025851170 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	21 Weeks
Contact Material	Copper Alloy
Mounting Type	Surface Mount, Right Angle
Insulation Material	Resin
Operating Temperature	-40°C~105°C
Packaging	Tape & Reel (TR)
Published	2010
Series	CLIK-Mate 502585
Feature	Pick and Place, Solder Retention
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	11
Applications	Automotive, General Purpose, Industrial, Lighting, Medical
Number of Rows	1
Fastening Type	Latch Holder
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Forked
Mixed Contacts	NO
Total Number of Contacts	11
Insulation Height	0.250 6.35mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.059 1.50mm
Insulation Color	Beige
Contact Gender	FEMALE
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	39.4μin 1.00μm
Contact Finish Thickness - Post	39.4μin 1.00μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

5025851170 Product Details

5025851170 Overview

The product comes in a package of Receptacle.The mounting type of the device is Surface Mount, Right Angle.We pack the product in a Tape & Reel (TR) case.A member of the CLIK-Mate 502585 Series.This device may be used for the purpose of Automotive, General Purpose, Industrial, Lighting, Medical.As a result of its Pick and Place, Solder Retention feature, it possesses a great deal of power.Devices operate at -40°C~105°C operating temperatures.
